Quick Release Coupling ISO7241-A Range

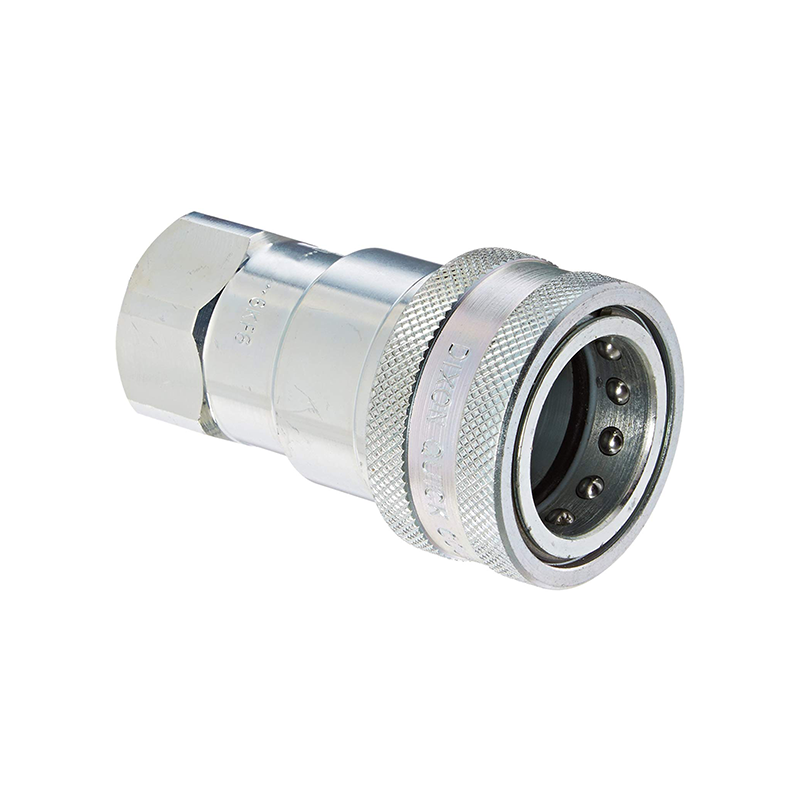

Product image 1

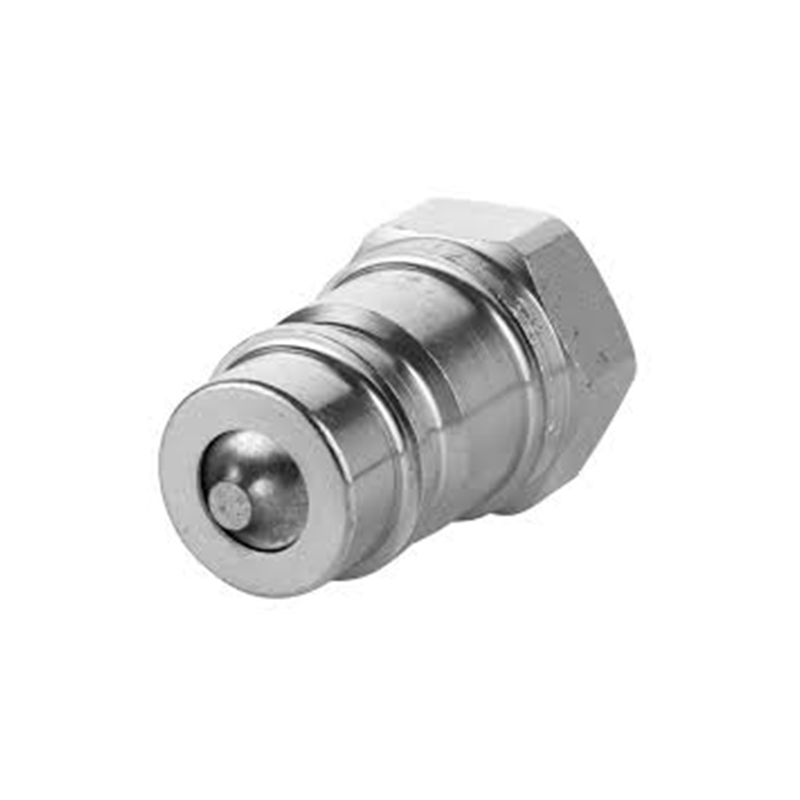

Product image 2

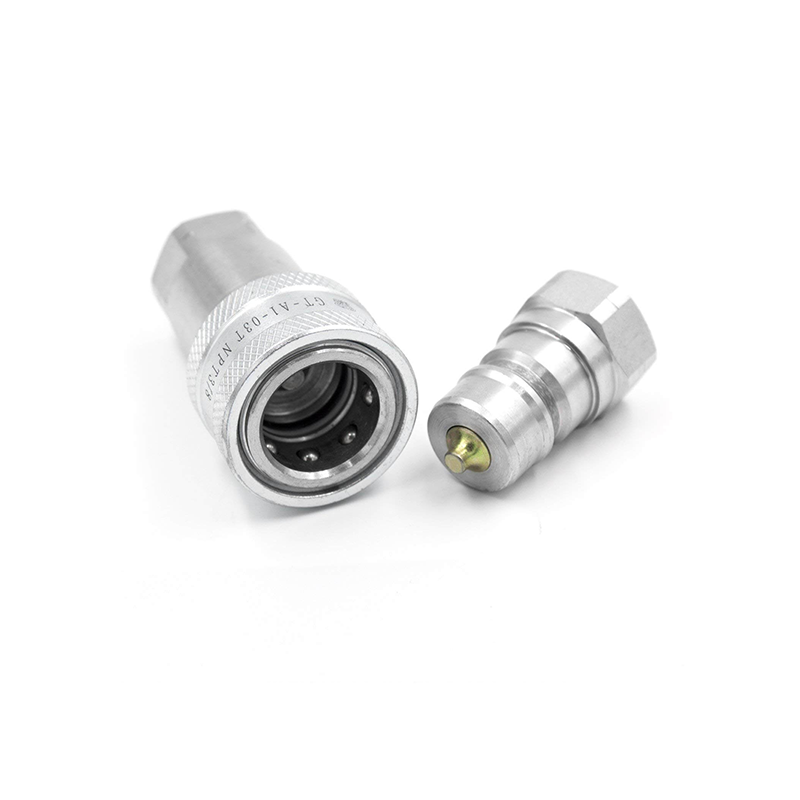

Product image 3
Regular price $29.70
Quick Release Coupling ISO7241-A Range
|
DATA SHEET |
Alfagomma ISO 7241-1 series “A” quick release couplings, from CEA Petroleum, are used for quick coupling and uncoupling of diesel, lubricants or hydraulic lines. This range of quick release couplings is suitable to use with generator supply and return lines.
During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated.
The quick release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.
Materials
- Galvanised steel with hardened parts subject to wear
- NBR O-rings (other materials optional)
- Polyethylene dust cap and dust plugs are available.
- Cr-III zinc plating through additional passivation for improved surface protection.
- Suitable for liquid lines with mineral oil-based hydraulic fluids to DIN 51524 T1+T2.
Temperature range:
- from -30 C to +125 C
