PUMP 240V AC KIT 100lpm DT1004JAUSM11
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100lpmDT1004JAUS_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100lpmDT1004JAUS2_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100lpmDT1004JAUS1_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100lpmDT1004JAUS7_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100LPMDT1004JAUSAdambyPiusi4_ca12d8e9-d275-4213-8801-47386a98d139_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100LPMDT1004JAUSAdambyPiusi1_de90ef3a-e223-4bba-881e-5238d916ec3a_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100LPMDT1004JAUSAdambyPiusi3_e7e46a59-6b74-4b9f-b5b5-6bf195a8afdb_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100LPMDT1004JAUSAdambyPiusi2_83d30410-a281-4550-ac1c-a2c4726cd36c_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/PUMP240VACKIT100LPMDT1004JAUSAdambyPiusi_3aa9423c-7456-4612-8fc7-d3b20927e77d_92x92_crop_center.png?v=1663640716)
![PUMP 240V AC KIT 100lpm DT1004JAUS](http://www.ceapet.com.au/cdn/shop/products/adampiusi800x800_f68cdbda-293e-4565-b24a-5fba15d32ebd_92x92_crop_center.png?v=1663640716)
Regular price $1,925.00

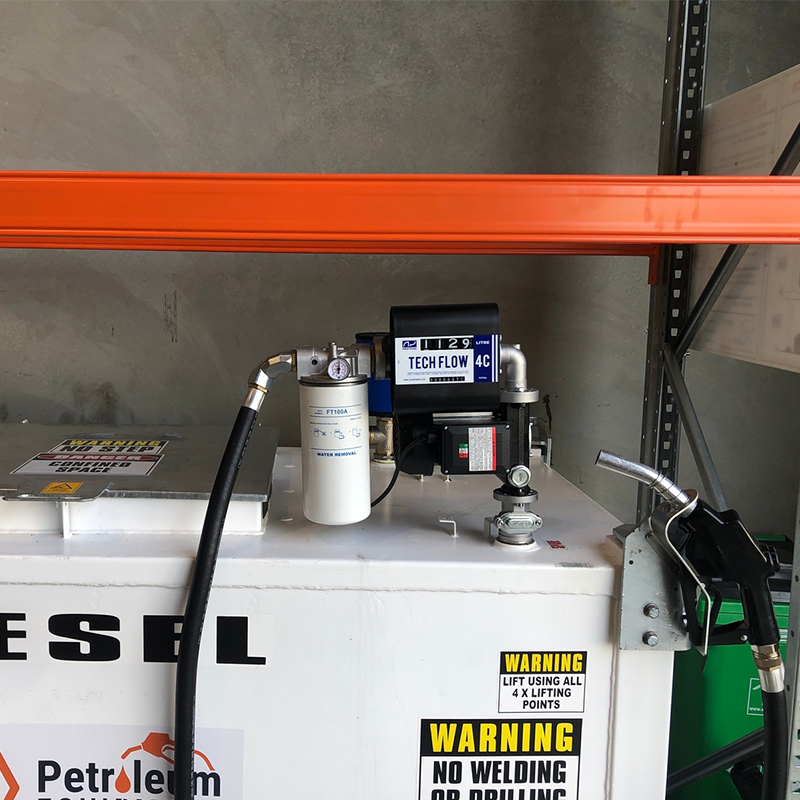

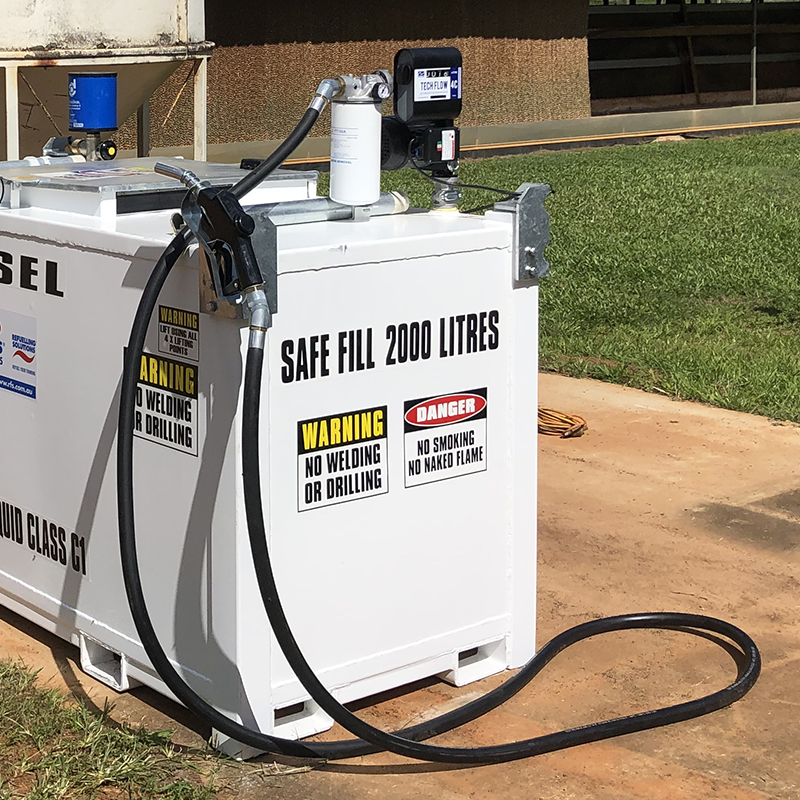

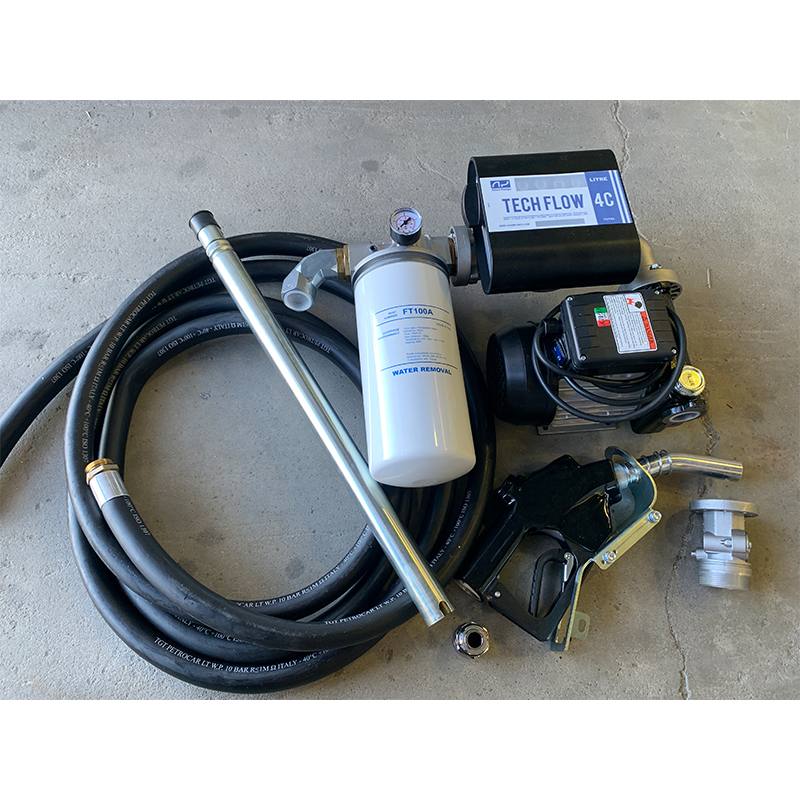

Designed and manufactured by Adam Pump, a Piusi group company, in Italy. Plug and Play Pump Kit for use with Self Bunded Tanks, Single Wall Tanks and Drums. This kit comprises the following components:
- SUCTION SPEAR - Telescopic Suction Spear and Drum / Tank Adaptor,
- PUMP - 240V AC 100lpm PA2 Pump,
- FILTER - FT10XA Particulate / Water Filter with pressure gauge,
- METER - 4 Digit Mechanical Meter,
- HOSE - 6m x 25mm ID Hose Scr Male BSP Ends,
- SWIVEL - Dual Plane Swivel,

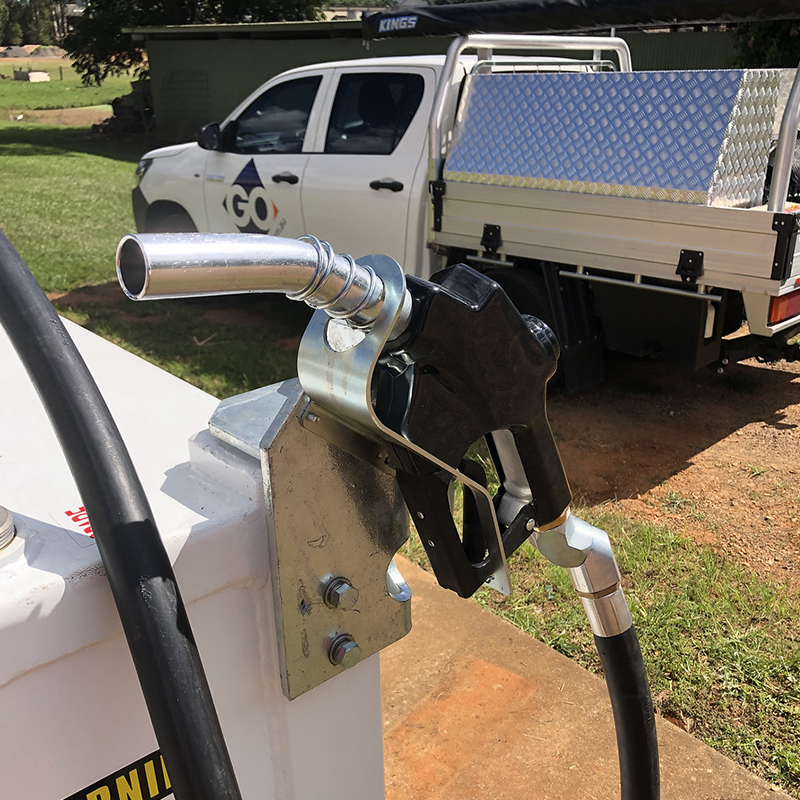

- NOZZLE - Auto Shut Off Nozzle

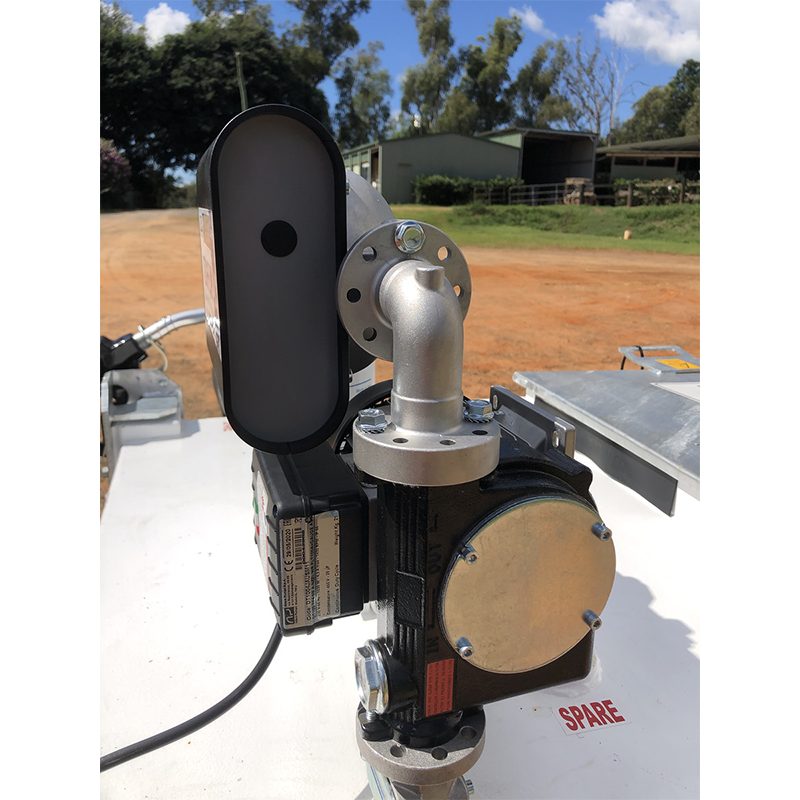

Pump Information
Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the PA2 240V 100lpm Pump, from GO Industrial, features a self-ventilated single phase, continuous duty motor with IP55 protection, class F insulation and thermal overload protection engineered into the electric motor.
Pump Features
- 240V AC - 4.1 amp
- Package dimension 290mm x 190mm x 250mm - 13.5kg
- Self-priming vane pump
- cast iron body
- sintered steel impeller
- acetal resin vanes
- integrated by-pass valve
- integrated stainless steel filter
- easily accessible ON-OFF switch,
- self-ventilated single phase motor
- IP55 protection
- class F insulation
- thermal overload protection engineered into the electric motor
- flow rate 100 l/min
- input/output 1”F BSP
- suitable for use with diesel fuel
- continuous duty design.
Filter Information
Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the FT10XA Filter Kit, from GO Industrial, provides 30um Particulate and Water Filtration and is suitable to use in a diesel dispensing application up to 100lpm. This filter kit features a Saturation Level Indicator Pressure Gauge
Filter Features
- DN25 (1") Female BSP Inlet and Outlet
- 30um Particulate and Water Removal
- Flow Direction Cast on the Housing
- Saturation Level Indicator Pressure Gauge
- Flow Rate up to 100lpm
- Package Size 290mm L x 190mm H x 250mm W - 2.5kg
Meter Information
The TF4S1 4 Digit Mechanical Meter, from GO Industrial, is supplied with nutating disk for the high precision measurement of diesel fuel. The Meter is fitted with a totaliser, a counter, and a side knob for resetting the counter. The fuel outlet direction can be adjusted according to the application at hand. The Meter is also fitted with a calibration screw for precision adjustment. The meter can be mounted on electric pumps or used in gravity applications.
Meter Features
- made in Italy by Adam Pump, a Piusi Group Company
- partial 4-digit
- total 8-digit
- flow rate 20-120 l/min
- input/output 1″ F BSP
- precision ± 1 >#/li###
![]() |
