PIUSI PUMP 240V 90lpm CUBE 90/44 · F00592000
Regular price $2,365.00
PIUSI PUMP 240V 90lpm CUBE 90/44 · F00592000

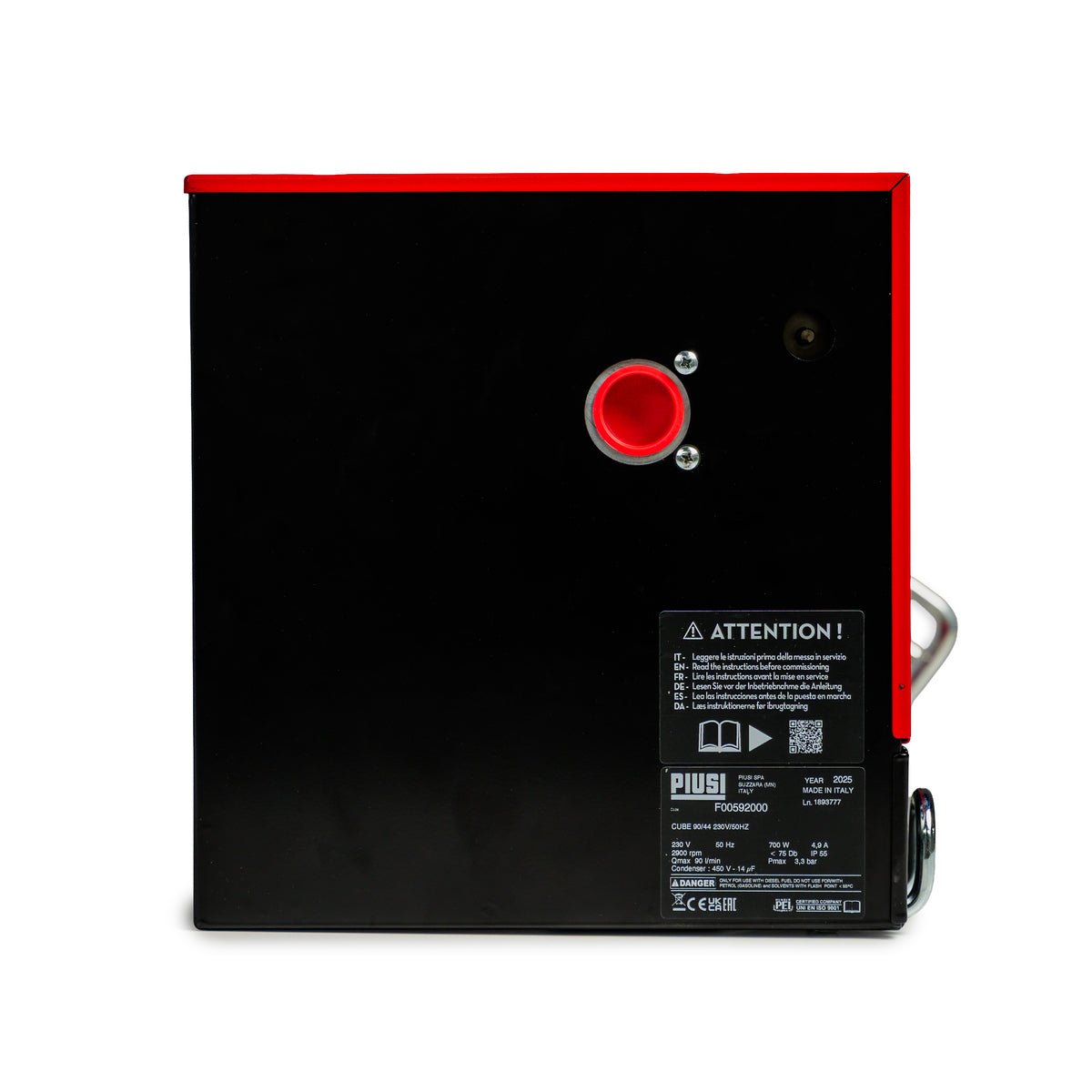

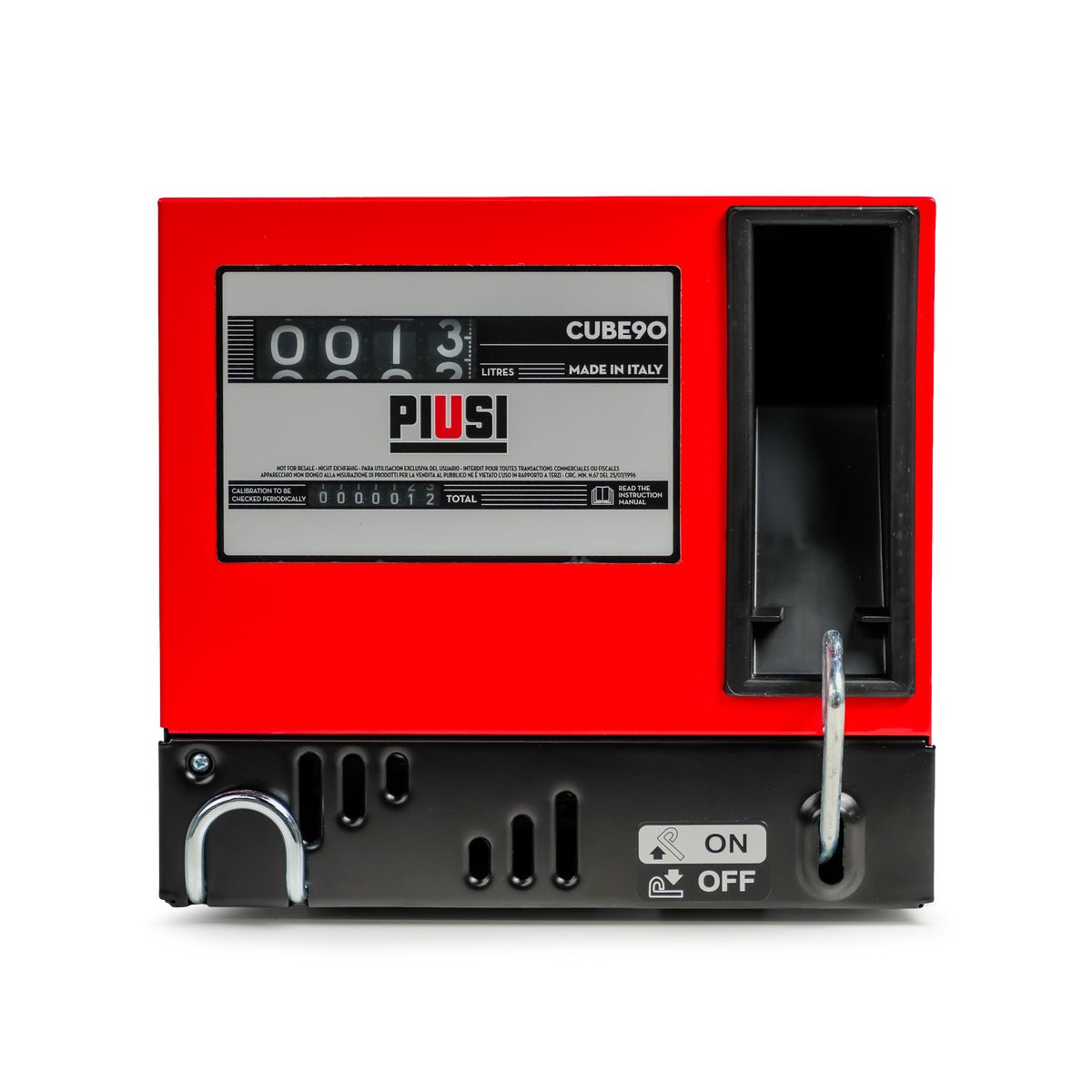

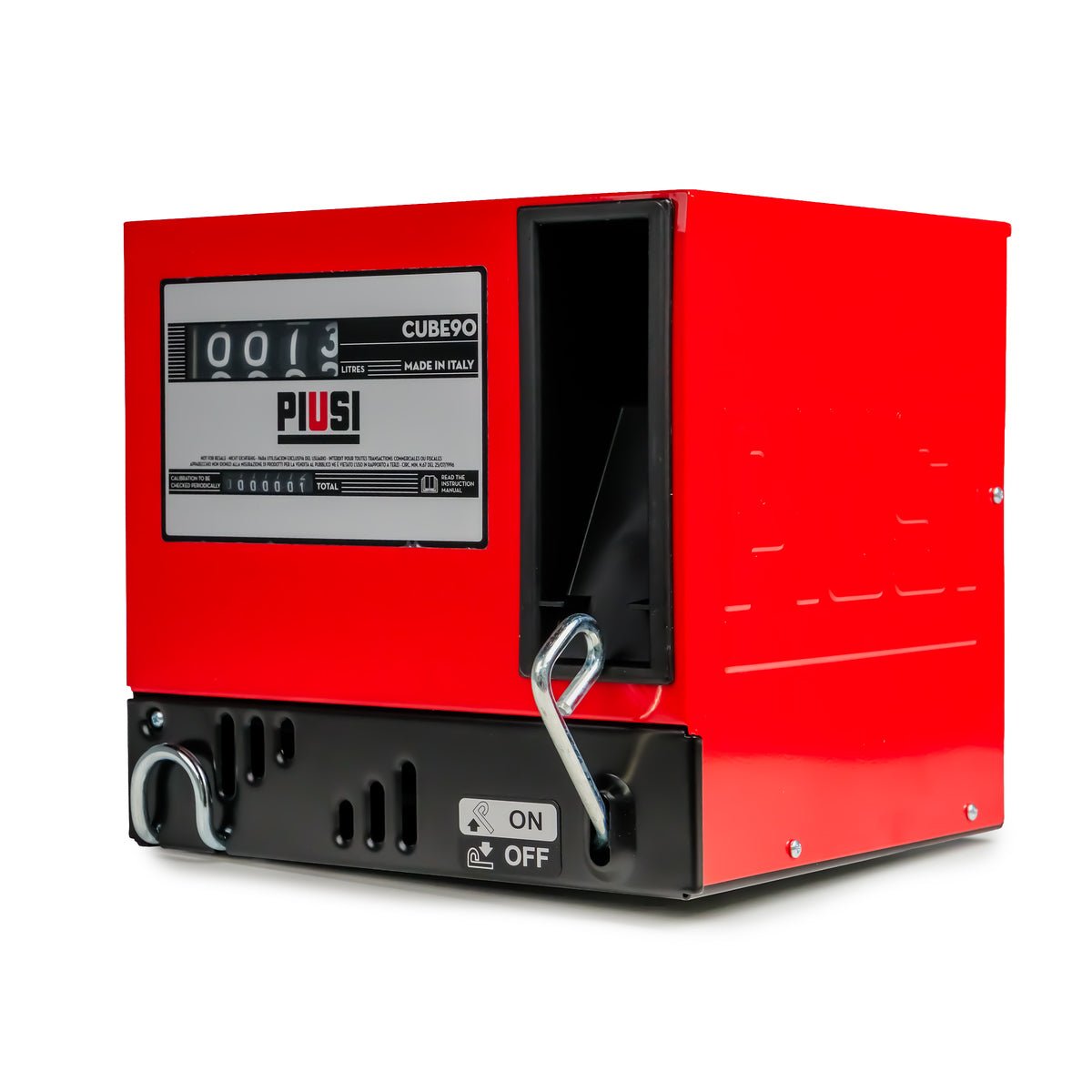

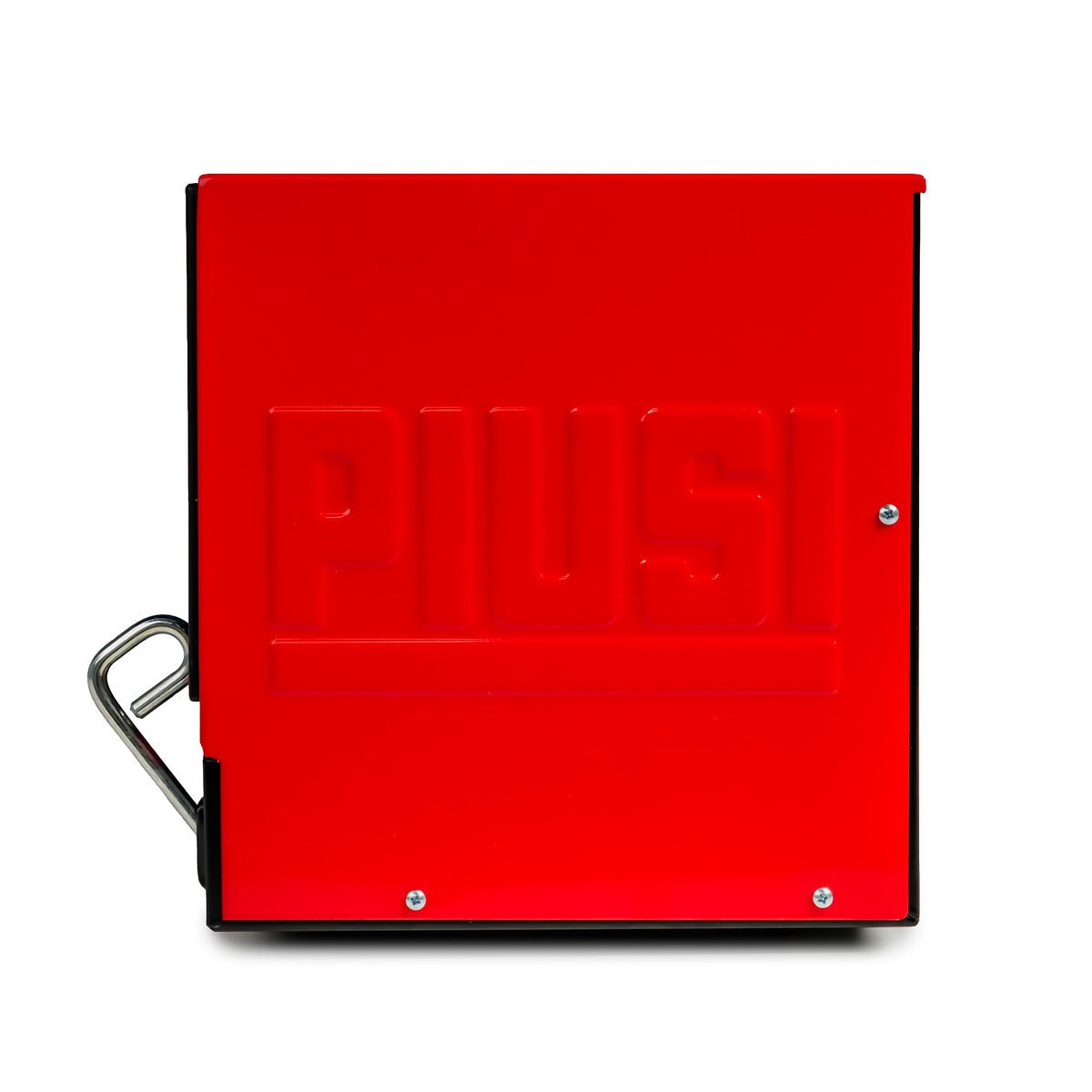

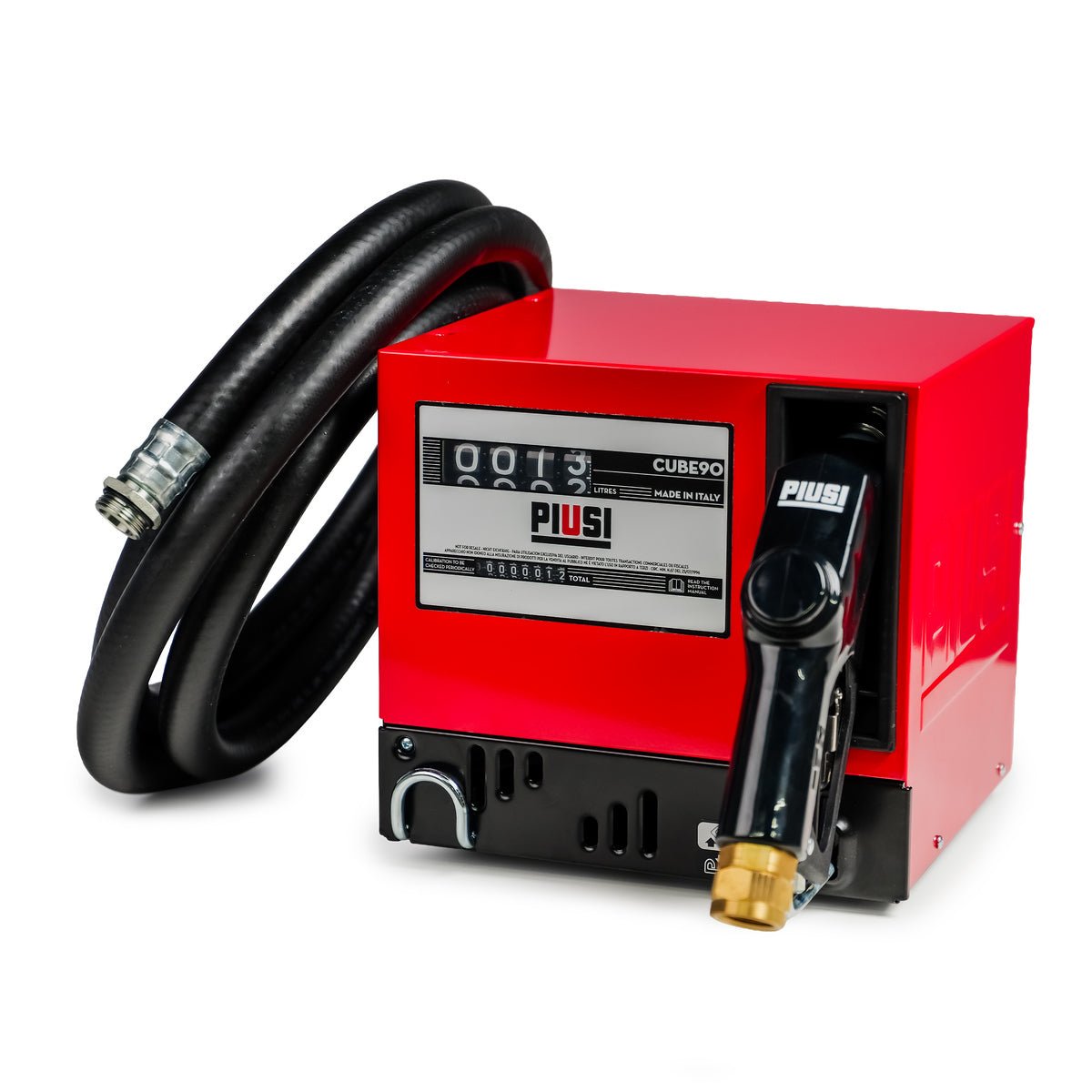

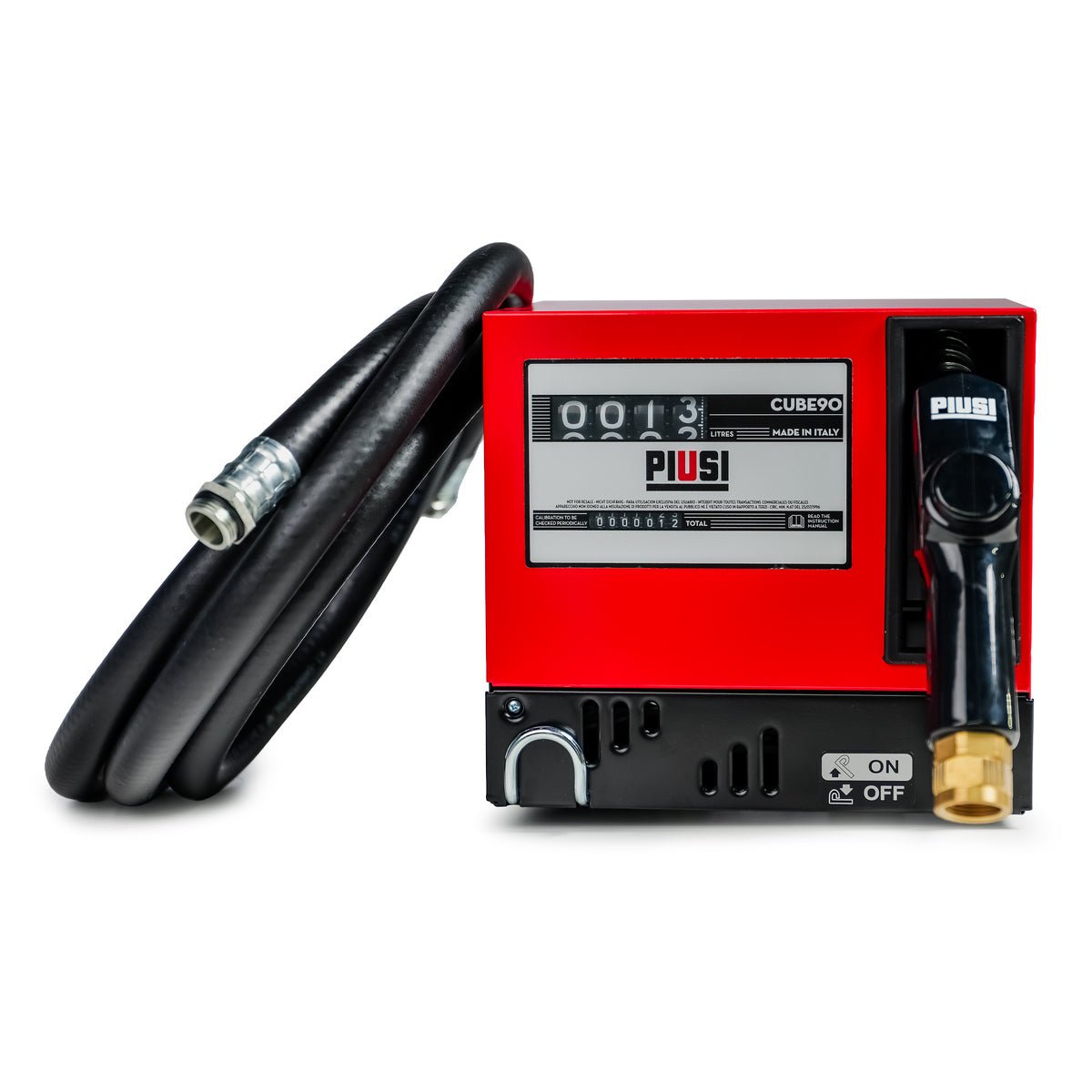

Cabinet diesel dispenser. 90 lpm at 240V AC with K44 mechanical meter, A120 auto nozzle, and 4 m delivery hose. Wall, tank, drum, or pedestal mountable.
Key Features
- 90 l/min Panther 90 self-priming vane pump with integrated bypass

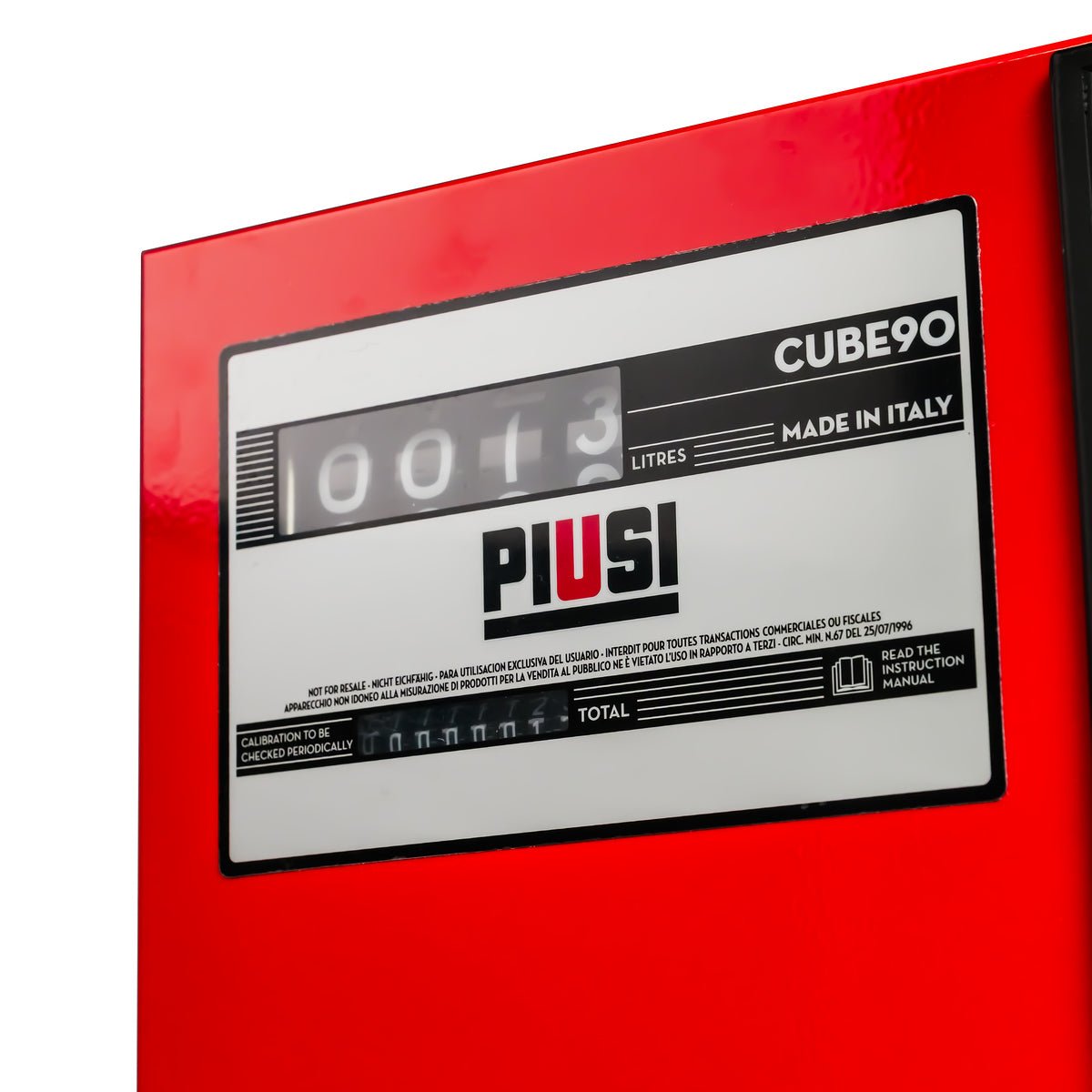

- K44 four-digit mechanical meter, +/- 1% accuracy
- Piusi A120 automatic shut-off nozzle with swivel connection
- 4 m x 1" delivery hose with crimped 1" BSP fittings
- Steel cabinet, IP55, thermal-protected induction motor
- Wall, tank, drum, or pedestal mountable

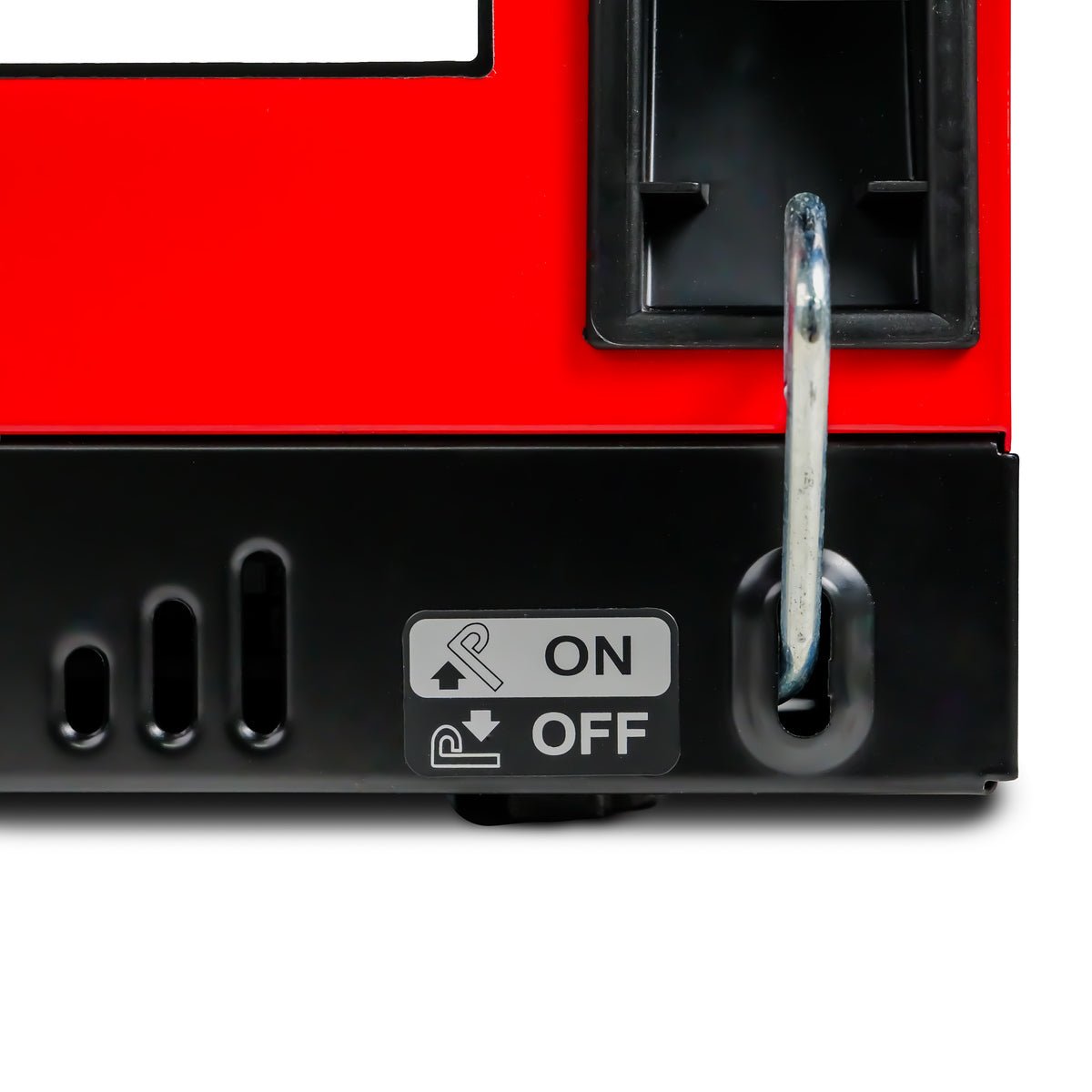

- Built-in nozzle holder with start/stop pump lever
- 12-month Piusi manufacturer warranty
Technical Specifications
| Manufacturer Code | F00592000 |
| Model | Cube 90/44 |
| Pump Type | Self-priming vane with bypass |
| Pump Engine | Panther 90 |
| Flow Rate | 90 l/min (23.8 GPM) |
| Voltage | 230V / 50Hz (compatible 240V AU) |
| Power | 700 W |
| Max Current | 4.9 A |
| Meter Type | K44 mechanical nutating disk |
| Accuracy | +/- 1% |
| Nozzle | Piusi A120 automatic shut-off |
| Hose | 4 m x 1" with crimped 1" BSP ends |
| Inlet | 1" BSP |
| Filter | Built-in suction-side mesh |
| IP Rating | IP55 |
| Motor Protection | Thermal + overload |
| Duty Cycle | 30 min ON / OFF |
| Operating Temp | +20 to -6 deg C |
| Fluid Compatibility | Diesel |
| Body Material | Steel cabinet |
| Weight | 22 kg |
| Packaging | 400 x 400 x 460 mm |
| Country of Origin | Italy |
| Warranty | 12 months |
Frequently Asked Questions
Can it run continuously?
No. The Cube 90/44 has a 30-minute on / off duty cycle. For continuous duty applications, look at the Piusi EX100 or E120.
Is it suitable for petrol or AdBlue?
No. The Cube 90/44 is rated for diesel only. For petrol you need an ATEX-rated pump like the Piusi EX100 or Panther EX 56. For AdBlue use a dedicated AdBlue pump.
What's the maximum suction lift?
The Panther 90 vane pump will draw approximately 2 m without a non-return valve, or 4 m with one fitted on the suction line.
Can I add a pulse output for tank monitoring?
Not on the K44 meter. If you need pulse output for a fleet management or telematics system, swap to the K44 pulser variant or a separate K600/K700 pulser meter inline.
Does it come with the pedestal stand?
No. The Cube ships ready for wall, tank flange, or drum mounting. The optional pedestal stand is sold separately.
How loud is it in operation?
The induction motor runs at around 70 dB(A) at 1 m, similar to a household fridge compressor.
Shipping
- Weight: 22 kg
- Freight: Carton
- Ships from Brisbane in original Piusi packaging. 400 x 400 x 460 mm carton.
| DATA SHEET |
For technical enquiries, installation or commissioning support, contact CEA Petroleum at sales@ceapet.com.au or call 1300 733 102.
