PIUSI HOSE 3/4" ID x 4m L DN25 (1") BSP Male Diesel / Petrol · F1815100A
Regular price $176.00
PIUSI HOSE 3/4" ID x 4m L DN25 (1") BSP Male Diesel / Petrol · F1815100A

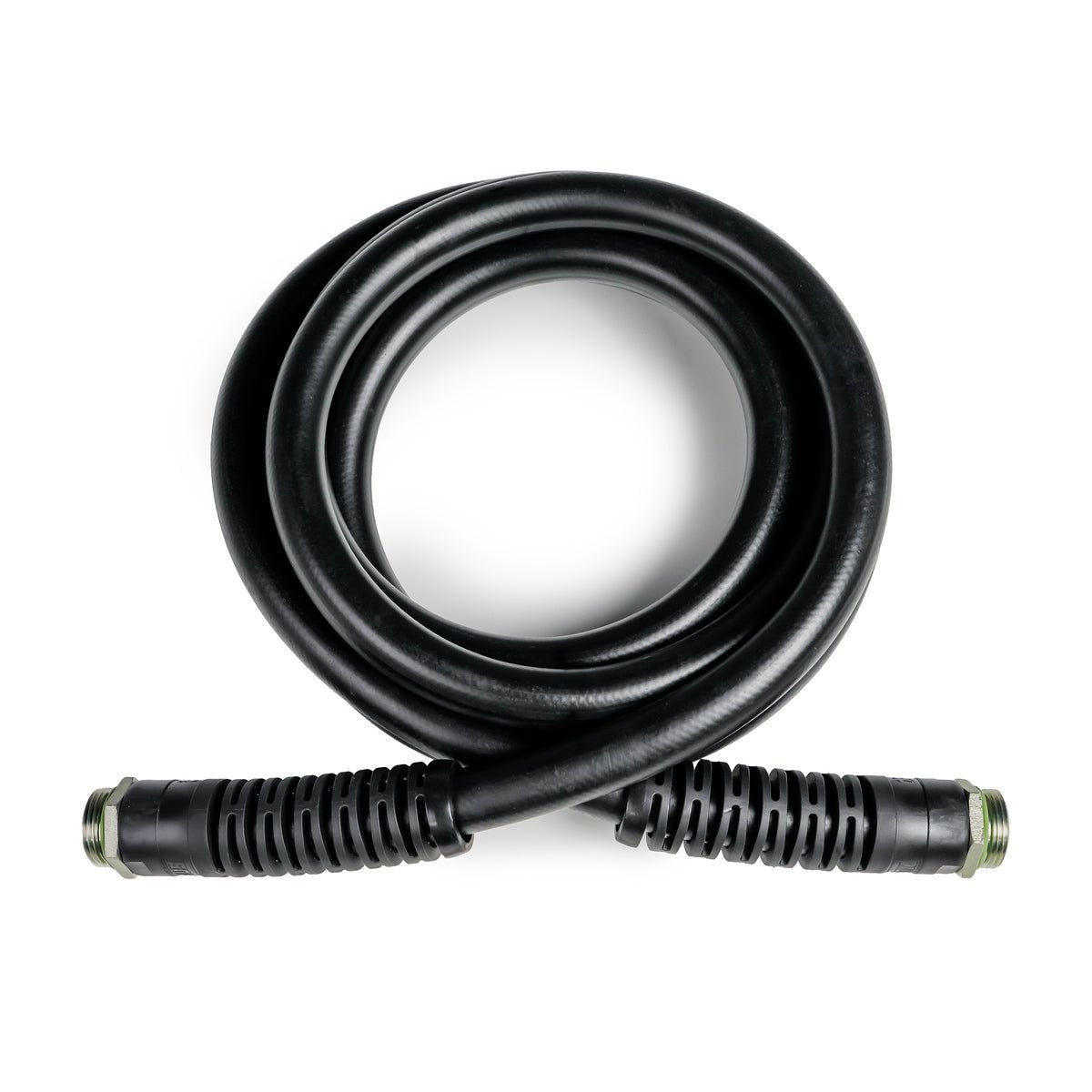

4 m fuel-rated delivery hose with 3/4" ID and 1" BSP male crimped fittings. The same hose we ship on every Piusi Cube and EX50 kit. Diesel and petrol rated.
Key Features

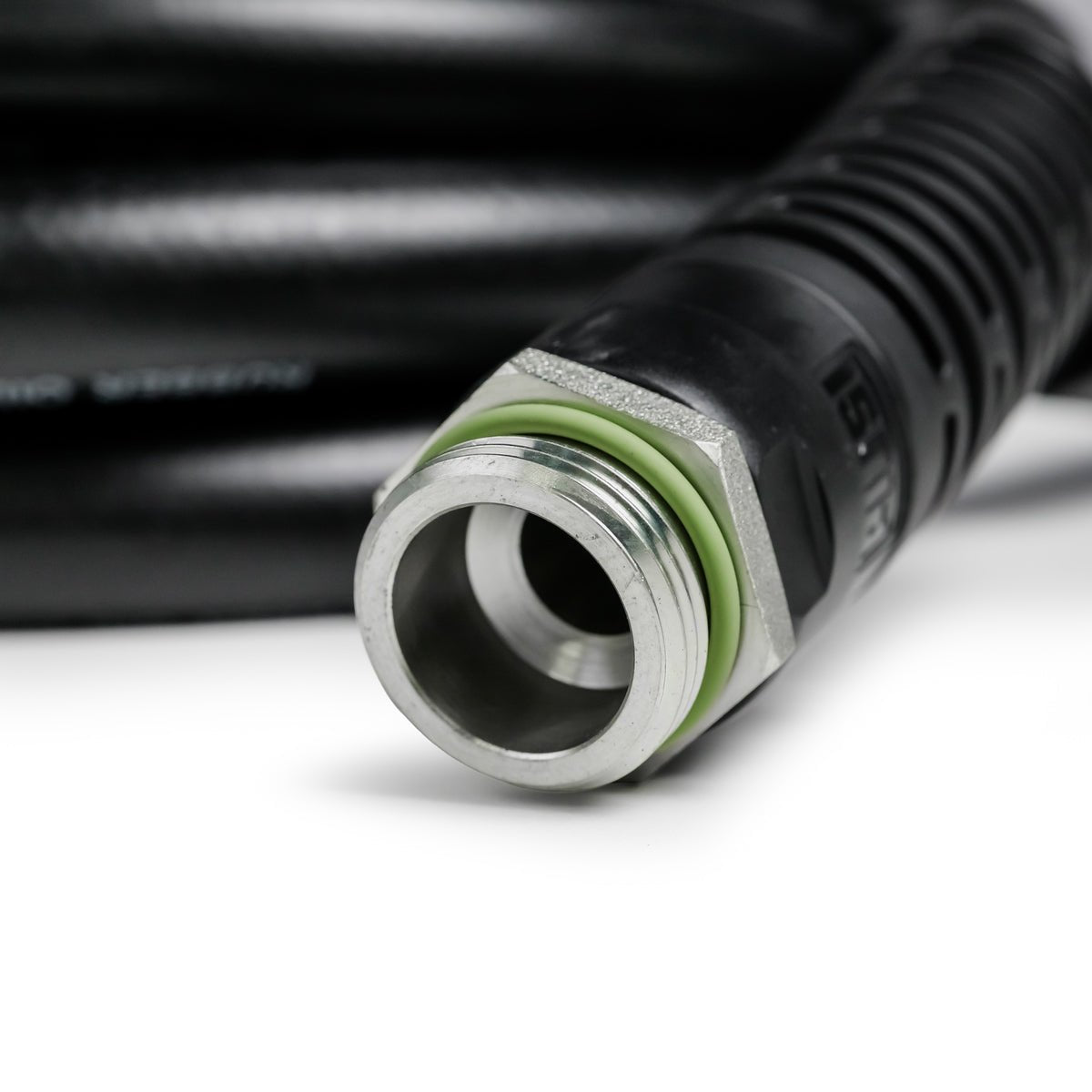

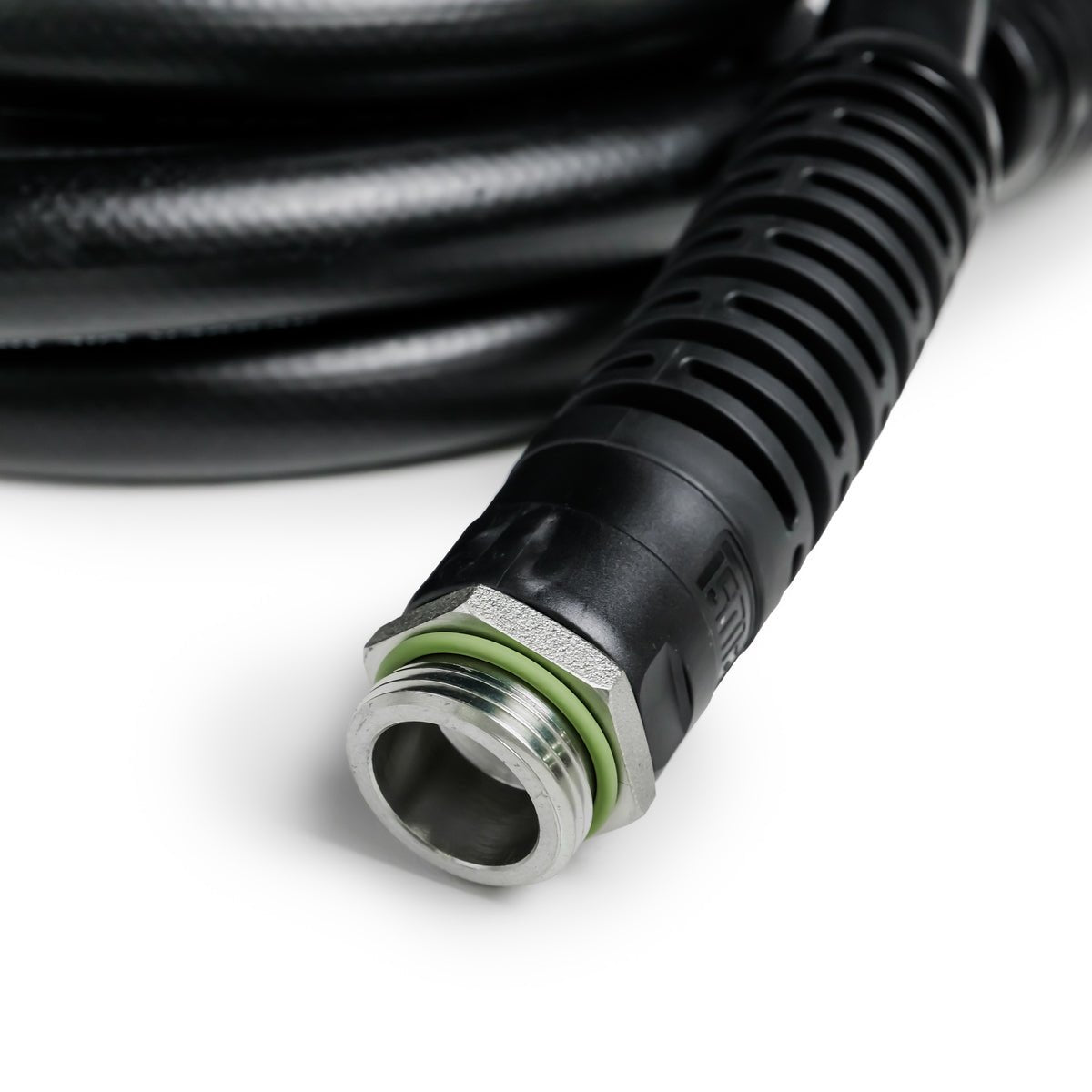

- 4 m x 3/4" ID delivery hose with 1" BSP male crimped ends

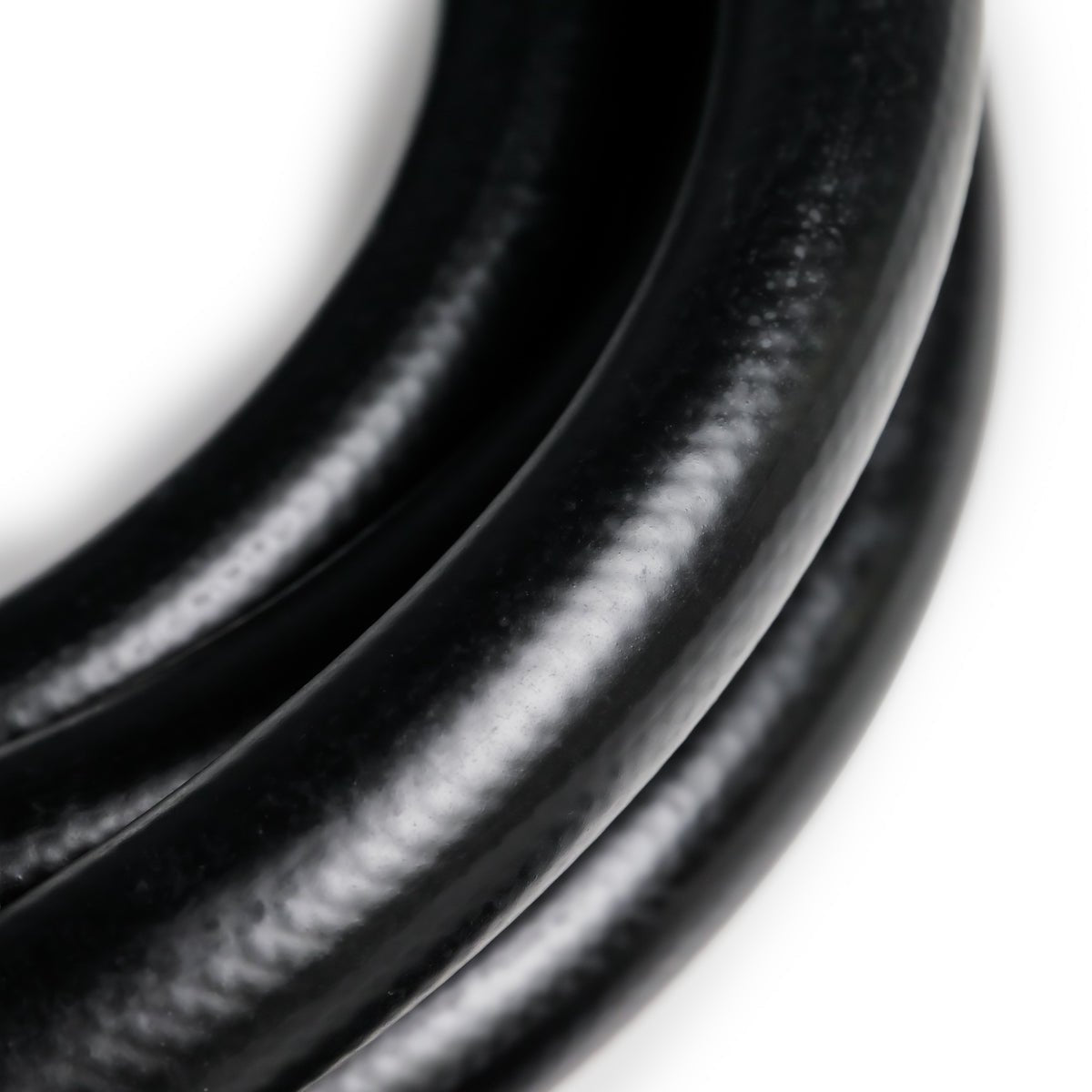

- NBR rubber cover with anti-static synthetic textile reinforcement
- Diesel and unleaded petrol rated, up to 50% aromatics
- Stainless steel swaged ferrules with O-ring sealed fittings
- Operating range -20 deg C to +80 deg C
- Genuine OEM replacement on Piusi Cube, EX50, ST, and Panther kits
- Drop-in fit on any pump with 1" BSP male outlet
Technical Specifications
| Manufacturer Code | F1815100A |
| Length | 4 m |
| Internal Diameter | 3/4" (20 mm) |
| Outer Diameter | 27 mm |
| End Fittings | 1" BSP Male x 2 |
| Connection Style | Crimped, swaged stainless ferrules |
| Cover Material | NBR rubber, anti-static |
| Reinforcement | Synthetic textile braid |
| Fluid Compatibility | Diesel, unleaded petrol (up to 50% aromatics) |
| Operating Temperature | -20 to +80 deg C |
| Sealing | O-rings on both fittings |
| Resistance | Weather and ozone |
| Weight | Approx 1.6 kg |
| Country of Origin | Italy |
| Warranty | 12 months |
Frequently Asked Questions
Will it fit my older Piusi Cube?
Yes. Every Cube 56, Cube 70, and Cube 90 made in the last 10+ years uses 1" BSP male outlet. Wind off the old hose, fit a new O-ring, wind on this one.
Is it OK for petrol or just diesel?
Both. The NBR cover with anti-static reinforcement is rated for unleaded petrol up to 50% aromatics, diesel, and kerosene. For aviation fuels (AVGAS, Jet A) check our aviation hose range.
Is it the same hose Piusi supplies on a new Cube?
Yes - identical OEM specification. Same hose we ship out on every new Cube 56, 70, and 90 leaving the warehouse.
Do I need different fittings for an EX50 kit?
No. The EX50 kit uses the same 1" BSP male connections as the Cube range. F1815100A is the standard replacement across most of the Piusi pump-kit lineup.
What's the maximum working pressure?
The hose is rated for the typical 1.5 to 2.5 bar pump output of Piusi self-priming vane pumps. It's not a high-pressure hose - don't use it on positive-displacement pumps over 5 bar.
Is the hose conductive for static dissipation?
Yes. The synthetic textile reinforcement carries a conductive thread that bonds the two end fittings, allowing static charge to dissipate to the pump frame and grounding circuit.
Shipping
- Weight: 1.6 kg
- Freight: Satchel
- Ships from Brisbane. Coiled in protective wrap, fits standard satchel.
| DATA SHEET |
For technical enquiries, installation or commissioning support, contact CEA Petroleum at sales@ceapet.com.au or call 1300 733 102.
