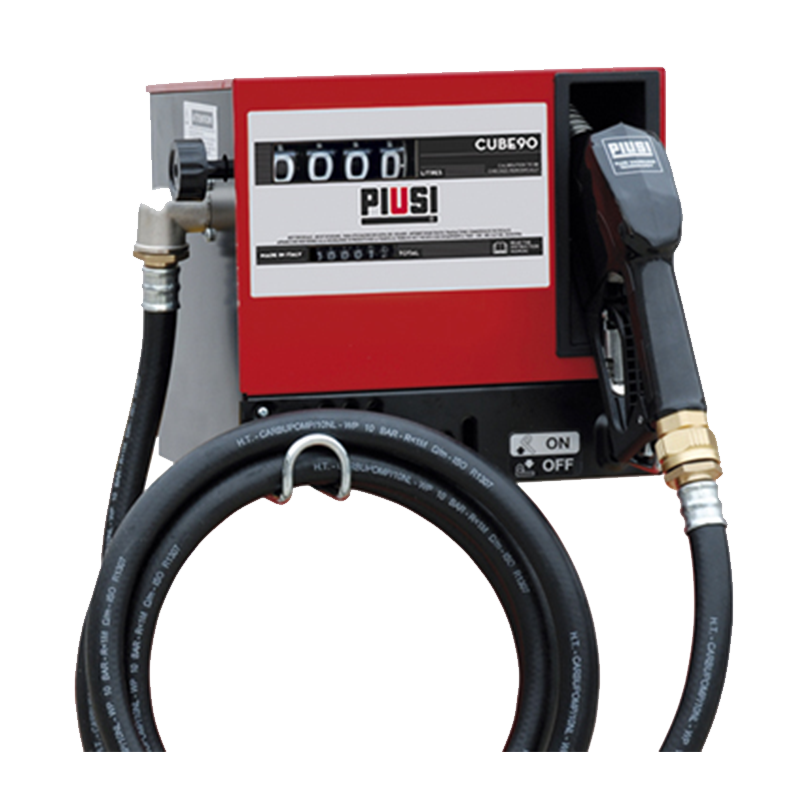

Piusi CUBE 90/44 Diesel Pump 240V AC 90lpm F00592000
Overview Piusi Cube 90/44
The Piusi Cube 90 electric diesel transfer pump has been developed to have a higher flow and is therefore a 90lpm version of the industry renowned Piusi Cube 56 & Cube 70 Fuel Dispensers.
Thanks to its quicker dispensing performance, this refueling pump is designed for filling larger vehicle tanks. The pump is supplied with the tried and proven Piusi K44 mechanical flow meter. The K44 is a four digit mechanical flow meter used for refueling larger vehicles, where a four digit volume of fuel is more likely to be dispensed in a single transaction.
This Piusi electric fuel transfer pump is supplied with an Automatic Shut Off Piusi 120 Nozzle. The pump is supplied with an in-built nozzle holder with a pump start lever and automatic pump stop functionality when the nozzle is returned. Operating the pump is an easy process.
This Italian manufactured Piusi Cube 90/44 allows fast and safe refueling of large vehicles, whilst accurately measuring the volume of fuel being dispensed.
As with the Piusi Cube 56 and Piusi Cube 70 Pumps, the Piusi Cube 90 can be installed on drums with the optional Piusi 2” quick coupling, or can be mounted freestanding using a pedestal. A wall support kit is also available in order to fit the Piusi Cube 90 refueling pump onto a wall or side of a fuel storage tank.
Features Piusi Cube 90/44
- Fully enclosed fuel dispenser
- 230v Diesel Transfer Pump
- Mechanical seal & incorporated bypass valve
- Flow Rate 90ltrs Per Min end of nozzle rated
- Piusi A120 Automatic nozzle & 4m x 1" Delivery Hose
- 4 Digit Piusi K44 Mechanical Flow Meter
- Nozzle holder with pump start/stop lever
- Protection grade: IP55 (Internal Motor)
- Various mounting options available
