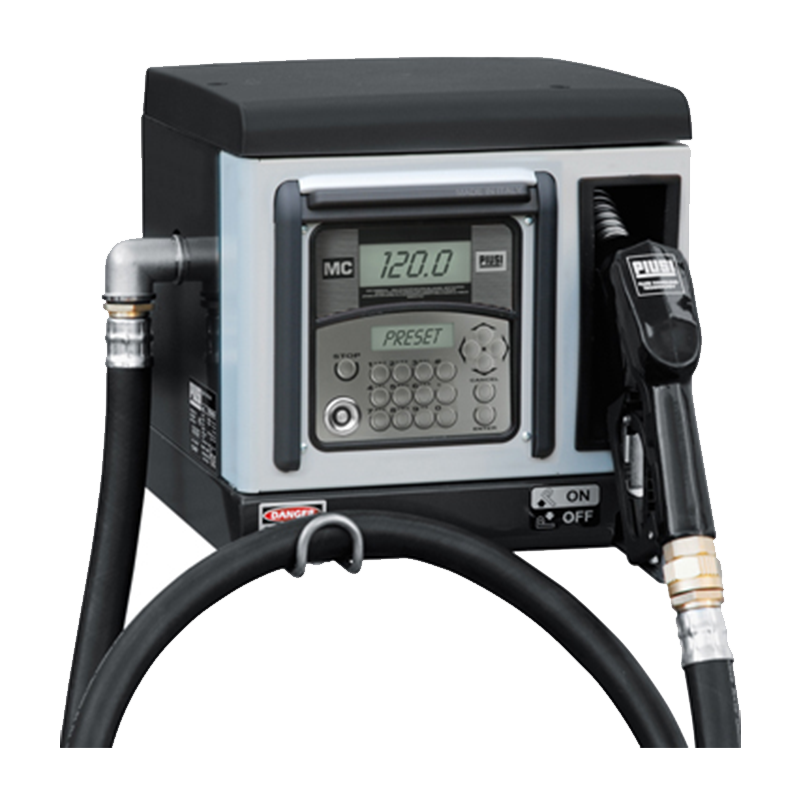

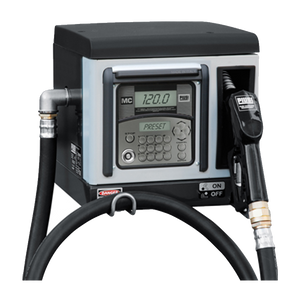

Overview Piusi Cube 70 MC 50 users

The PIUSI CUBE MC, from GO Industrial, is a simple, plug and play, cost effective, integrated dispensing and electronic fluids management system that allows Fleet Managers to control and record the dispensing of diesel on site.  The integrated 240V AC Pump provides 70lpm dispensing via the supplied 25mm ID x 4m Hose and Auto Shut Off Dispensing Nozzle.

The Piusi CUBE MC is designed for for small and medium sized businesses that use their own tanks for refuelling their work vehicles with diesel.  Authorisation to access fuel is via with a PIN or Yellow User Key.  Up to 80 users can be authorised to use this facility.

Features Piusi Cube 70 MC 50 users

• Integrated, plug and play, Dispensing and Electronic Fluids Management Console for use with Diesel.
• Low cost, yet feature packed, electronic fluids management system
• 70lpm dispensing via 4m x 25mm ID Hose and Auto Nozzle
• Provides control over dispensing of liquids and reports on the date / time / volume of liquid dispensed, the vehicle details and operator details
• PC based software with USB on site data transfer
• Additional purchase code PIUSI-SOFTWARE-BUNDLE provides the required PC Based Software, Red Data Download / Managers Key, 10 x Yellow User Keys and a PC USB Interface.
• Cost effective upgrade to an existing dispensing system to provide security and electronic reporting of fuel dispensed
• Up to 80 users
• Memory for 255 transactions


Specifications

• Package Size - 400mm L x 400mm W x 460mm H - 25kg
• Console Size (with nozzle fitted) - 345mm L x 500mm W x 346mm H
• Power - 240V AC 50hz 800W 3.9 amps
• Maximum Power Supply - 6.5 amps
• Number of Users - 80
• Transaction Memory - 255
• Suitable for use with Diesel
• Pump Type - Piusi Panther 72
• Pulse Meter Type - Piusi K600
• Hose - 25mm ID x 4m
• Accuracy - +/- 0.5%
• Nozzle Type - Piusi A60 Automatic Shut Off
• Integrated roller shutter to provide sun protection to the screen and pin pad assembly
• Console interfaces include:
  • External Nozzle Switch
  • Automatic Tank Gauge
  • Pulse Meter Input
  • Pump Relay
• The Piusi CUBE MC will:
  • Authorise dispensing of fluids to approved users
  • Authorisation can be via a PIN or Yellow User Key (i Button)
  • Record the date / time / volume of fluid dispensed, the user details, vehicle details suxch as number plate (system accepts up to 10 alphanumeric characters) and odometer / engine hours (system accepts up to 6 numeric characters)
  • Allow for the dispensing of preset volumes of fluid
  • Operate an external nozzle switch
  • Manage a relay that will turn off the pump in the event of minimum level in the tank
• Data can be downloaded using one of the following methods
  • i Button - Red Managers Key i Button that interfaces with a USB Key Reader to your site PC
  • Direct PC Connection - RS Converter with USB Plug for direct PC connection.  The maximum distance of the PC from the Console is 1000m for direct connection
  • Printer - A Printer can be connected using a RS Converter
