GO Helios Self Bunded Tank - 5,000L GO-Helios-5

GO Helios Self Bunded Tank - 5,000L

DATA SHEET

Overview

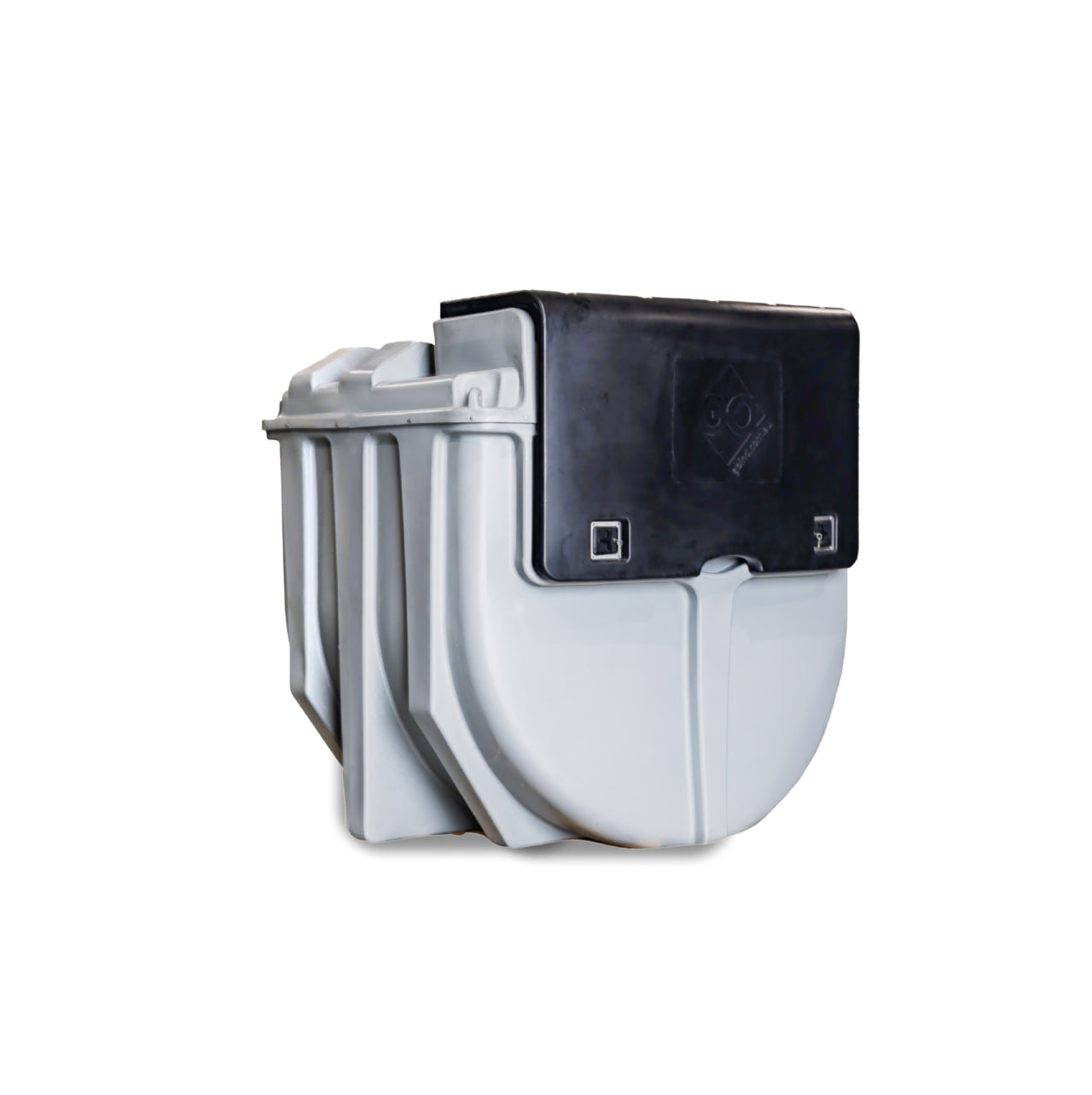

Unlock superior fuel storage for your operation, no matter the scale. The GO Helios Self-Bunded 5,000L Tank delivers the same premium performance and compliance as its larger counterpart (GO Helios Self Bunded Tank - 10,000L), perfectly sized for businesses needing a more compact footprint. This robust poly tank provides a complete, reliable solution for on-site fuel management. Engineered for smaller-scale operations that refuse to compromise on safety and efficiency. Whether you need a dependable Diesel tank or a specialised AdBlue tank, this unit offers the same advanced features in a more versatile size.

How it Works

This isn't just a container, it's a fully integrated fuel management system designed for maximum safety and immediate use.

• 110% Self-Bunded Security: Its double-walled, self-bunded design offers 110% containment, preventing spills and eliminating the need for costly concrete bunds.
• Plug-and-Play Simplicity: Arrives ready-to-use with a pre-installed PIUSI pump. Just plug in and go. Available in 240V or 12V with various flow rates.

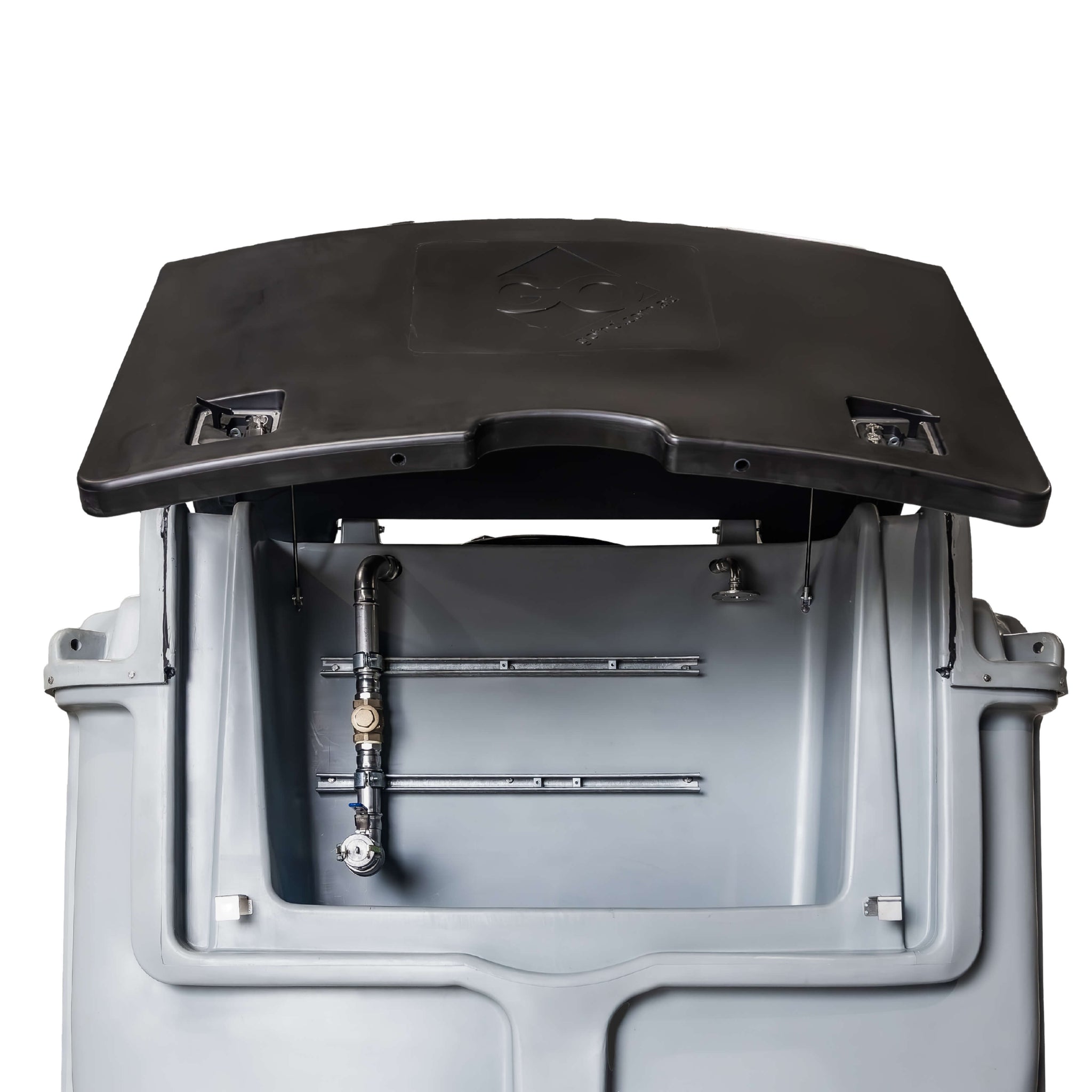

• Integrated Pumping Cabinet: The integrated cabinet with an 80L bund contains spills during dispensing, protecting your site and the environment.
• True Capacity Guarantee: Our design ensures the safe fill level allows for maximum usable storage, so you get the full capacity you pay for.

Specifications

• 110% Self-Bunded: Double-walled design contains leaks and spills. The outer tank is engineered to hold 110% of the inner tank's capacity, providing peace of mind and eliminating the need for costly and space-consuming concrete bunds.

• Plug & Play: pump system is installed and ready to use - Quality PIUSI pump, choose an option to best suit - 240V, 12V, High or Low Flow options.

• Fully Integrated Pumping Cabinet with 80L Bund: Ensures overfill protection at the point of dispensing with a fully integrated bund in the cabinet to collect fill spillage.

• True Capacity Guarantee: Safe fill level ensures maximum usable storage.

• Long-life build: Unlike steel, UV-stabilised polyethylene won’t rust, corrode or crack.

• Australian made: built for harsh climates by a trusted local manufacturer. UV-resistant, will not rust.

• Australian Standards Compliance: Designed to AS1940:2017 (The Storage and Handling of Flammable and Combustible Liquids) and AS4766 (Polyethylene Storage Tanks).

Dimensions

• Length: 2,410cm
• Width: 2,320cm
• Height: 2,292cm


Weight

• Diesel Tank: 570KG
• AdBlue Tank: 615KG

Features

• Minimum Clearances
  • Tank to be accessible for fuel deliveries, with barriers to prevent
    vehicle damage.
  • 3m from buildings, public areas, boundary or ignition sources
  • 8m from other flammable storage
  • 15m vegetation clearance in rural areas
• Base Requirements
  • Concrete bitumen, or compacted crusher dust
  • 75–100mm thick, extending 300mm beyond the tank base


• Fire & Safety
  • Keep a fire extinguisher within 10–15m
  • Signage: "Diesel Fuel – No Smoking", tank capacity and Warning
    Signage - this comes standard with your Fuel Bunker


• Spill & Electrical Safety
  • Have a spill kit on site and train staff in its use
  • If connecting to mains, an electrician must install the power and
    earthing rod.

• Built-in Compliance Features
  • 110% bunding capacity - A bunded tank is a tank within a tank
    the outer tank captures leaks or spills from the inner tank.
  • Breather vents and overfill protection
  • Earthing rod and antistatic probe included
  • Pre-fitted diesel-grade pumps, hoses, and nozzles
  • Lockable cabinet with built-in containment
