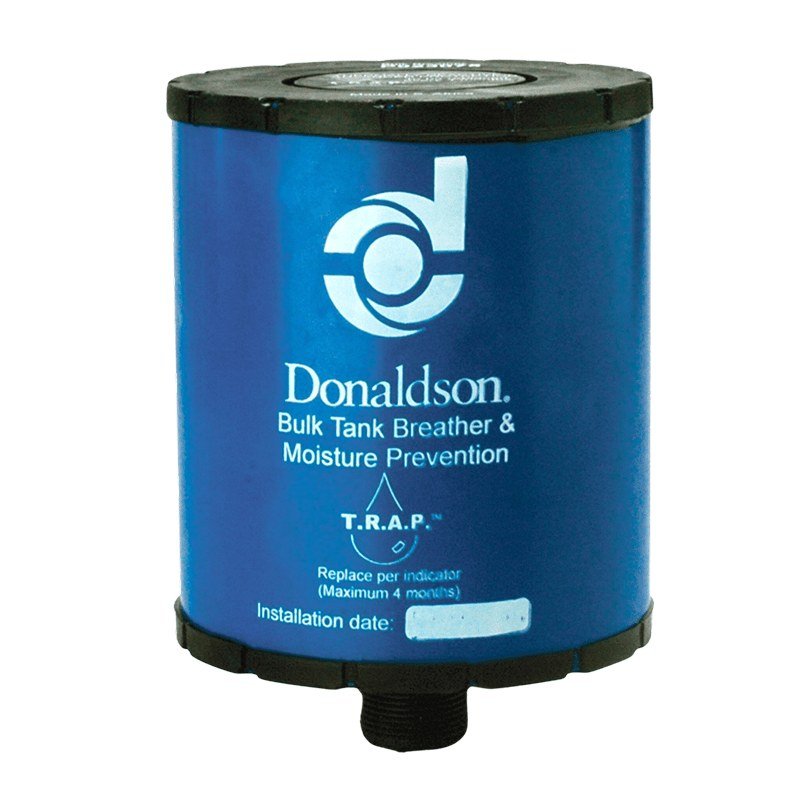

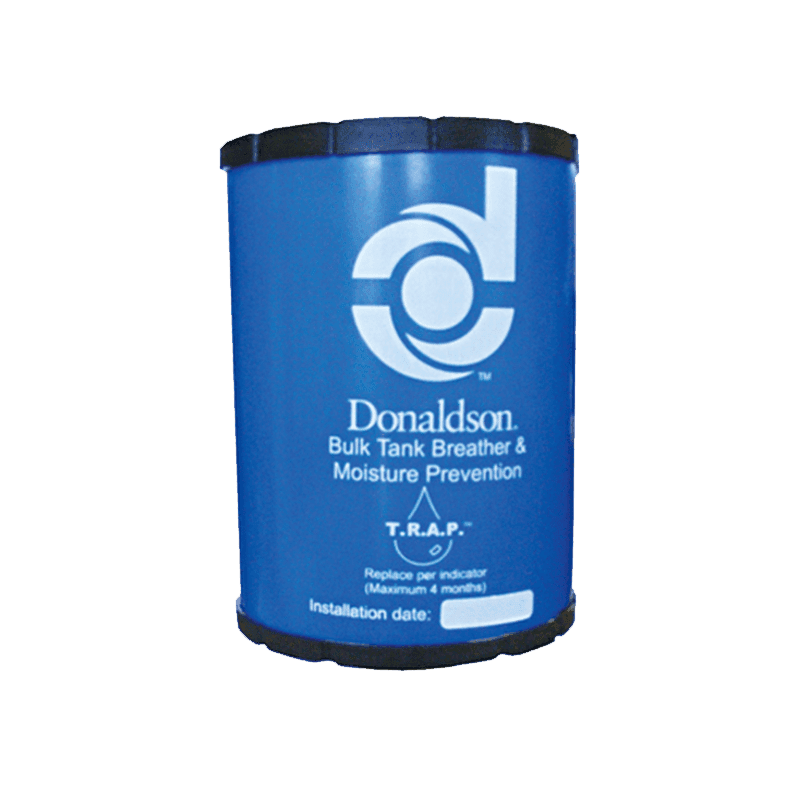

DONALDSON Bulk Tank Breather for P506159 P923075
Regular price $258.50
DONALDSON Bulk Tank Breather for P506159 P923075
Donaldson P923075 replacement TRAP breather element for the P506159 DN40 (1 1/2") breather. 1 1/4" BSP/G thread, 97% efficiency at 3 micron, 165 mm outer diameter, 220 mm long. Suits bulk diesel, lubricant and hydraulic tank breathers.
Key Features
- For use with all diesel fuels and lubricants
- Above and below ground tanks
- Mobile service trucks
- Indoor and outdoor applications
- High flow and large capacity tanks (may require multiple breather units)
- Establish the safe working pressure and vacuum values of your tank before calculating breather requirements
Technical Specifications
Performance
| Efficiency 97% | 3 micron |
Physical
| Outer Diameter | 165 mm (6.50 inch) |
| Thread Size | 1 1/4 BSP/G |
General
| Brand | T.R.A.P.™ |
| UPC Code | 742330197042 |
Applications
- Diesel bowser servicing
- Fuel dispensing system maintenance
- Workshop fuel filtration
- Mobile refuelling trailer upkeep
- Construction site fuel quality control
Frequently Asked Questions
What is the Donaldson P923075 filter element?
It is a replacement fuel filter element that fits Donaldson P506159 filter housings. Used in diesel and petrol dispensing to remove particulates and protect downstream equipment.
Which filter housing does this element suit?
The P923075 is designed for Donaldson P506159 filter assemblies. Check your existing housing part number before ordering.
How often should I replace the filter element?
Replace when you notice reduced flow, pressure drop across the filter, or visual contamination. Typical service intervals vary by fuel cleanliness and throughput.
Can I use this element with petrol and diesel?
Yes, the P923075 suits both diesel and petrol dispensing applications.
What is the warranty and who do I contact for support?
Filter elements are consumables with no warranty beyond arrival defects. For technical questions or bulk orders, contact sales@ceapet.com.au or 1300 733 102.
Shipping
- Weight: 2.5 kg
- Freight: Parcel Post
- Ships from Brisbane warehouse. Standard delivery 2-5 business days.
| DATA SHEET |
For technical enquiries, installation or commissioning support, contact CEA Petroleum at sales@ceapet.com.au or call 1300 733 102.
