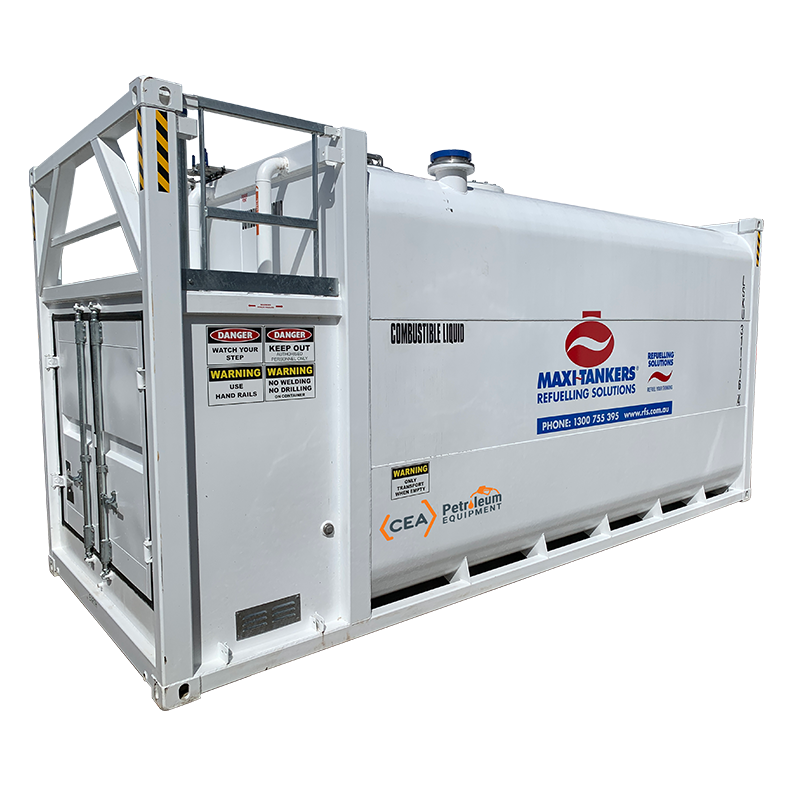

Product image 1CEA Containerised Self Bunded Tank CON-30

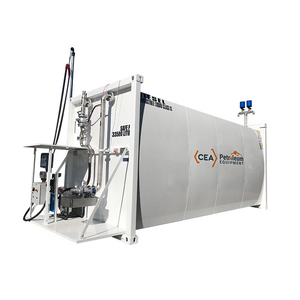

Product image 2CEA 38,000L Containerised Self Bunded Tank fitted with 110lpm end of nozzle dispensing equipment

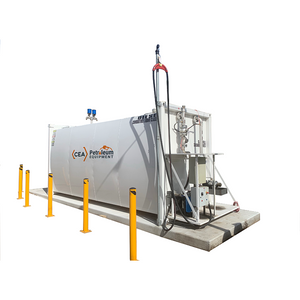

Product image 3CEA 38,000L Containerised Self Bunded Tank fitted with 110lpm end of nozzle dispensing equipment

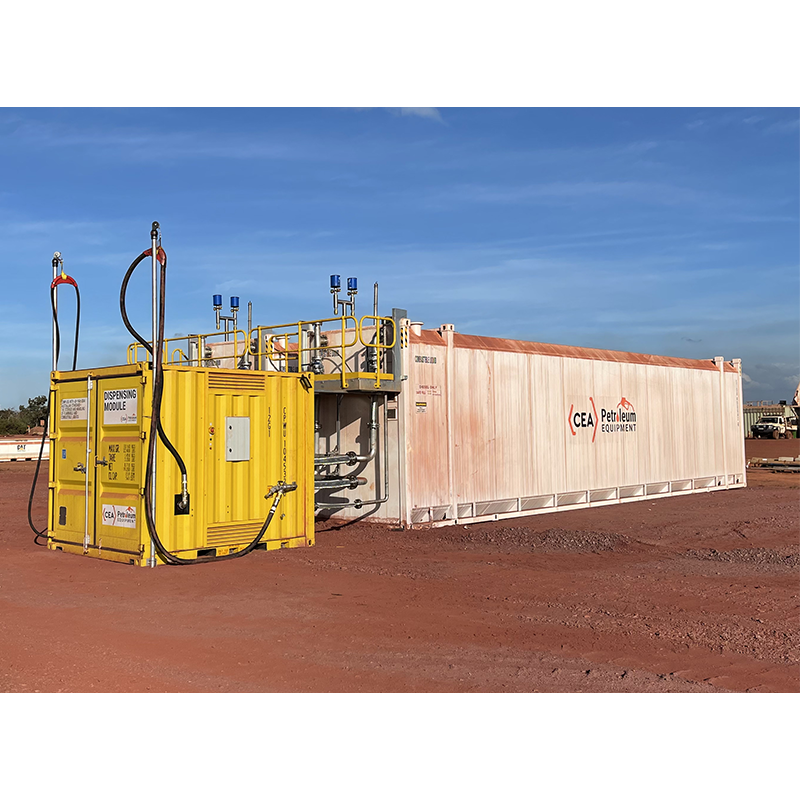

Product image 4CEA CON-110 Self Bunded Tank Farm installed at Roper Bar Iron Ore Mine, NT

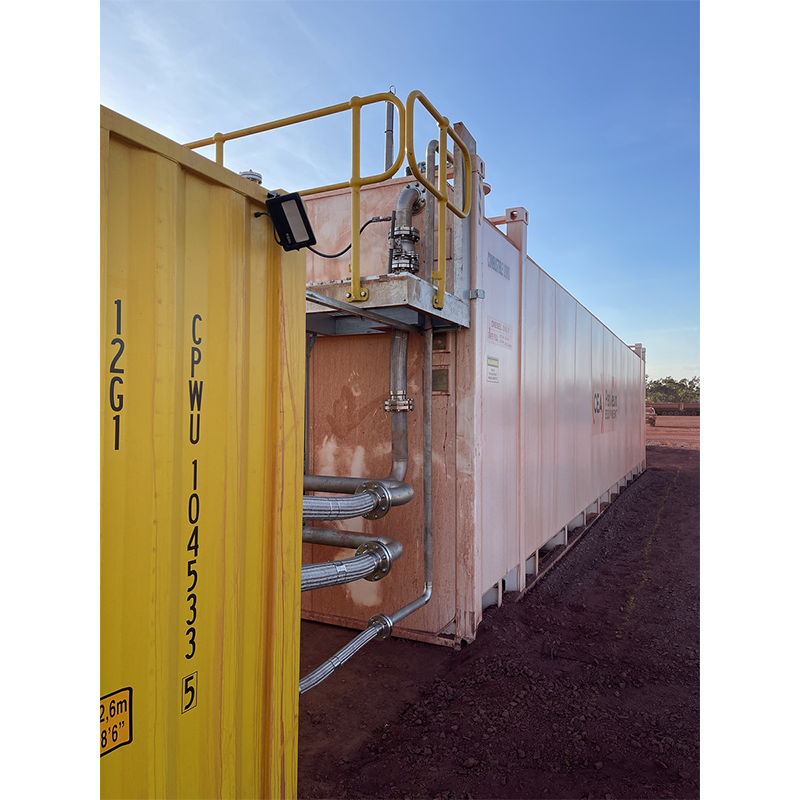

Product image 5CEA CON-110 Self Bunded Tank Farm installed at Roper Bar Iron Ore Mine, NT

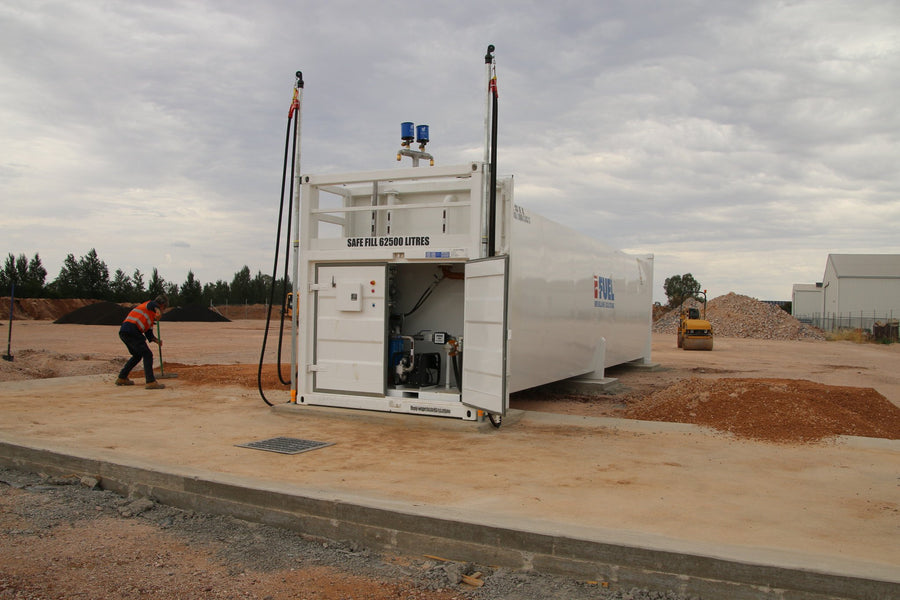

Product image 6David Boots Sand and Gravel, Leeton, NSW - CON-65 iFUEL® Containerised Self Bunded Tank

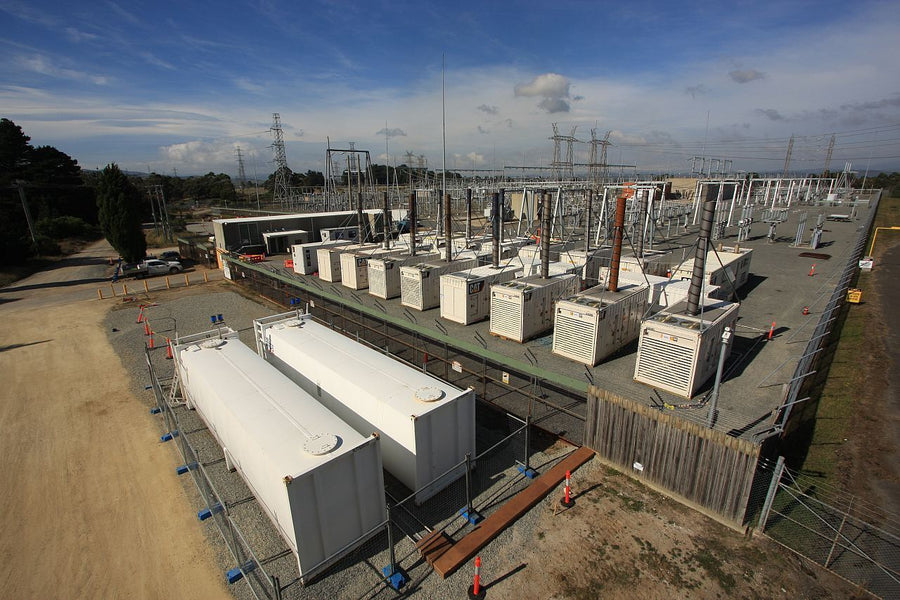

Product image 7CEA CON-69 69,000L Self Bunded Tank Farm deployed in a power generation application

CEA Containerised Self Bunded Tank Range

 DATA SHEET
 OPERATORS MANUAL
 RISK ASSESSMENT
 GA DRAWING 12,000L
 GA DRAWING 18,000L
 GA DRAWING 30,000L
 GA DRAWING 38,000L
 GA DRAWING 69,000L
 GA DRAWING 75,000L
 GA DRAWING 80,000L
 GA DRAWING 110,000L
 GA DRAWING DECAL LAYOUT



The CEA Containerised Self Bunded Tank Range is designed and approved as a standard intermodal shipping container footprint.  This comprehensive range of self bunded tanks are supplied CSC plated, allowing any of the tanks to be shipped Road, Rail or Sea as a standard container.

    Product Range

    CODE

    CAPACITY

    (litres)

    SAFE FILL LEVEL

    (litres)

    LENGTH

    (mm)

    WIDTH

    (mm)

    HEIGHT

    (mm)

    WEIGHT

    (kg)

    CONTAINER

    FOOTPRINT

    INTEGRATED

    PUMP BAY

    CON-12 12,000L 10,100L 3,000 2,438 2,896 4,500  10FT HIGH CUBE Yes
    CON-18 18,000L  16,250L  3,000 2,438  2,896 4,500  10FT HIGH CUBE No
    CON-30 30,000L  27,000L  6,058  2,438  2,896  7,500  20FT HIGH CUBE  Yes
    CON-38 38,000L  33,500L  6,058 2,438  2,896  7,500  20FT HIGH CUBE No
    CON-69 69,000L  65,000L  12,192 2,438  2,896  14,500  40FT HIGH CUBE Yes
    CON-75 75,000L 71,500L 12,192  2,438  2,896  14,500 40FT HIGH CUBE No
    CON-80 80,000L 76,000L
    14,630
    2,438 2,896 15,925 48FT HIGH CUBE Yes
    CON-110 10,000L 106,500L
    14,630
    3,000 3,200 21,100 BREAK BULK Yes



    FEATURES

    UL LISTED

    • Approved to UL142 / ULC-S601 - certificate # 20120912-MH49221

    SELF BUNDED TANK (DOUBLE WALL)

    • Self Bunded Tank (Double Wall) Unique Rounded Rectangular Design

    CONTAINER FOOTPRINT

    • Manufactured to standard 10ft, 20ft, 40ft and 48ft container footprint.

    CSC PLATED

    • CSC Plated as a Standard Shipping Container.  Can be transported via Sea / Rail or Road.

    SELF BUNDED TANK PROFILE

    • Rounded Rectangular tank profile maximises storage footprint whilst maintaining full under self bunded tank visibility for long term tank fuel / oil storage applications

    APPROVALS

    • Designed and approved to UL142, ULC-S601, BS799, AS1940, AS1692, AS1657

    INTEGRATED VALVING

    • CEA designed and manufactured 80mm (3") Anti Syphon Valve and Overfill Protection Valve.  Option to fit the new Banlaw Pressure-less Overfill Protection System

    OVERFILL ALARM

    • CEA Battery Operated (12V) Overfill Alarm

    FILL INLET

    • Supplied with 80mm (3") Fill Line including Sch 40 Pipe, ANSI 150# Flanges, Camlock Male Fitting with Dust Cap, Fire Safe Ball Valve for isolation and Wafer Style Non Return Valve.

    SUCTION OUTLET

    • supplied with 80mm (3") Suction Line including Sch 40 Pipe, ANSI 150# Flanges terminating with a Fire Safe Ball Valve.

    BUNDED PUMP BAY HOUSING

    • Choice of Integrated or Clip On Bunded (Contained) Pump Bay Housing featuring removable side panels to allow for simple multiple tank connection for tank farm applications.  The bunded pump bay housing is supplied with heavy duty lockable container doors with weather proof seals.

    LADDER + PLATFORM

    • Integrated Ladder / Platform designed to AS1657.  Platform designed to allow for ladder connection to either side of the tank providing flexibility for site positioning and operation.  Infill pieces can be added in multiple tank farm applications to provide for a complete walk through platform system linking all tanks together.  Side staircase modules are available to be simply attached at each end of the tank farm to complete the tank top access system.

    MANWAY

    • 600mm Manway with Integrated Ladder down into the tank module (2 x manways provided on all tanks larger than 12 000L) to assist with degassing for future tank maintenance

    PAINT SPECIFICATION

    • Paint Colour RAL9003 Signal White/ Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry fi lm thickness no less than 180 um

    OPTIONAL BAFFLES

    • Option for baffling in order to allow the tank to be moved with liquid.

    LIQUIDS COMPATIBILITY

    • Suitable for the storage and dispensing of diesel, lubricants, gasoline (petrol) and waste oil.

    MULTIPLE COMPARTMENT

    • multiple compartment tanks are available in all footprints to allow the storage of multiple grades / types of liquids such as various grades of lubricants or different fuels

    DE-WATERING

    • Rounded Floor Profile with engineered low point. Tank fitted with 25mm Suction Line for Water Removal
