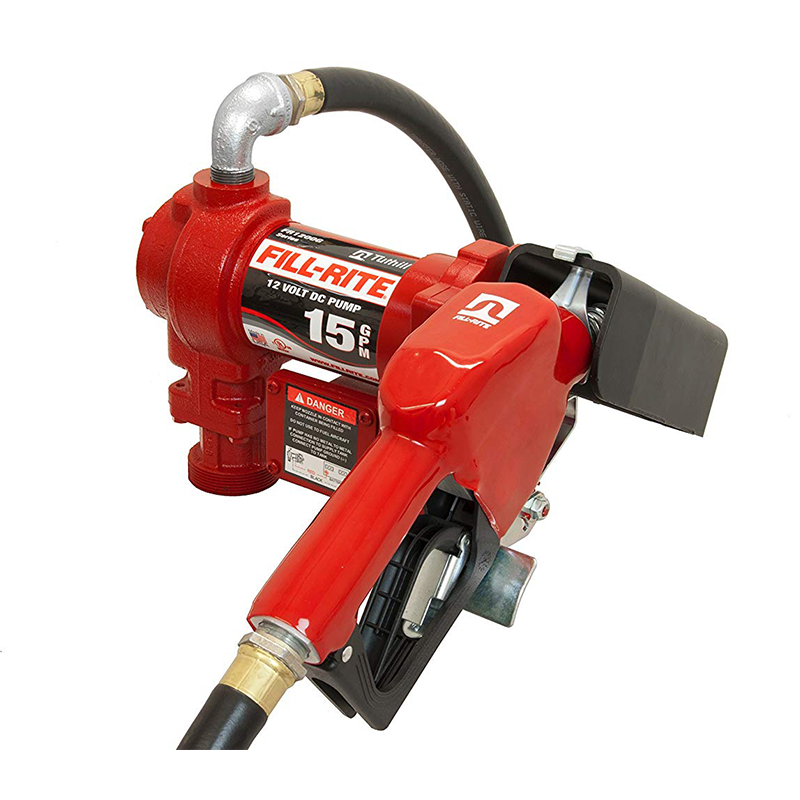

Fill-Rite 1200 Series Pump Kit Range 12V DC 57lpm

Product image 1Fill-Rite 1200 Series Pump Kit Range 12V DC 57lpm
Product image 2Fill-Rite 1200 Series Pump Kit Range 12V DC 57lpm

Regular price $0.00

Fill-Rite 1200 Series Pump Kit Range 12V DC 57lpm

 DATA SHEET

 TECHNICAL SHEET

 USER MANUAL



    • suitable for use with Diesel and ULP

Fill-Rite Heavy Duty 1200 Series 12V DC Pump Kit Range, Made in the USA, , 57 LPM heavy duty, cast-iron, rotary vane fuel transfer pump from GO Industrial. Designed for petrol, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. UL/cUL, ATEX, CE motor. Two-year warranty.

Features & Benefits

  • Up to 15 GPM (57lpm)
  • UL/cUL listed
  • Diesel, Gasoline, Kerosene, E15, Biodiesel up to BD20
  • 2 year warranty
  • 2 in. threaded base for tank mounting
  • Heavy duty cast iron construction
  • Cast bronze rotor with bronze rotary vanes
  • Built-in strainer
  • 12 ft (3.6m) hose with static wire with selected kits

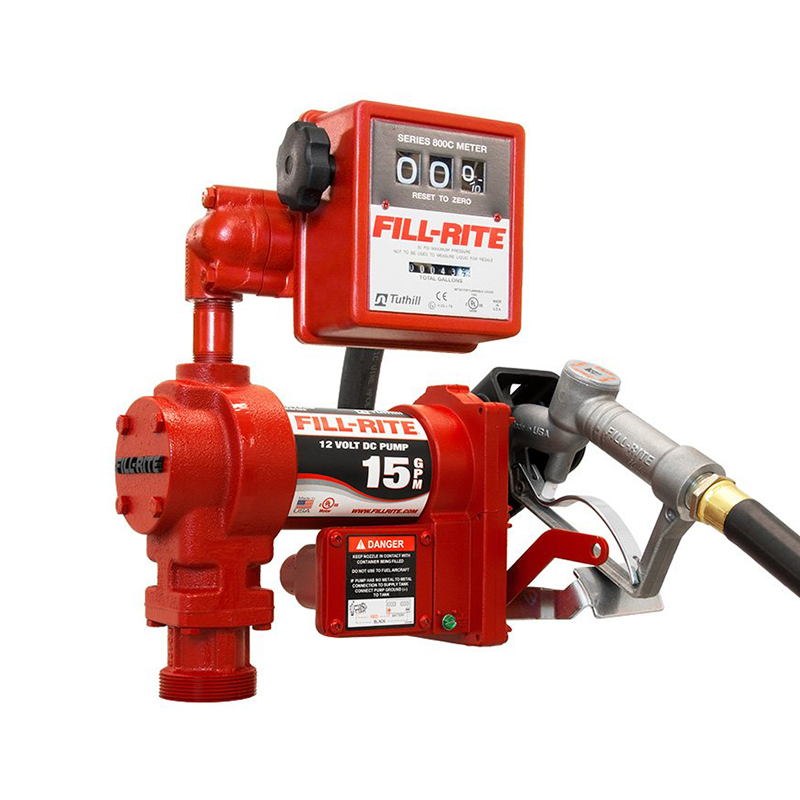

  • 807CL meter with selected kits
  • 5.5m battery cable with clamps,
  • 500mm to 870mm steel telescoping suction pipe
  • Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
  • Capable of providing a suction lift of up to 2m (diesel)
  • 1/4 hp DC motor @ 2,600 RPM provides up to 11.3m of discharge head
  • 20 amp draw (maximum) with a 30 minute duty cycle
  • Thermal overload protection prevents motor from overheating during abnormal usage
