Electric Start Diesel Pump DN50 (2 Inch) 240lpm Yanmar L48N Engine
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Regular price $7,975.00
Electric Start Diesel Pump DN50 (2 Inch) 240lpm Yanmar L48N Engine
| DATA SHEET |
Overview

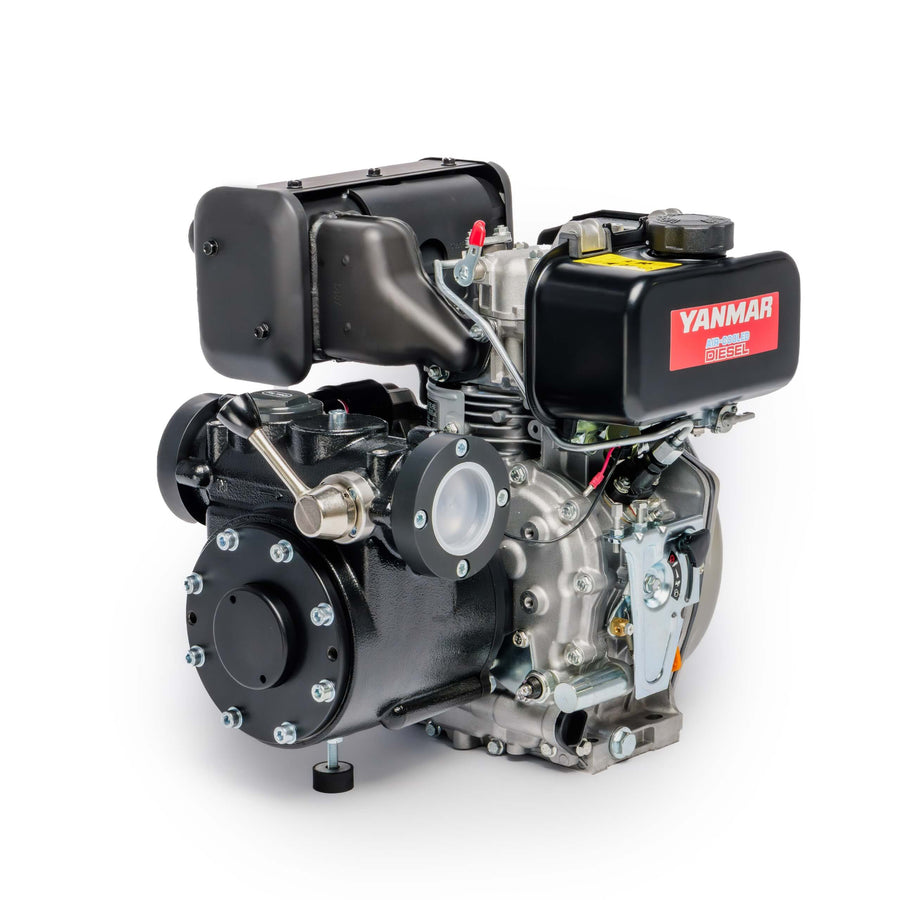

No power, no problem. The GO Fill DMTP0012 Electric Start, Diesel Powered, Positive Displace Vane Pump provides a true stand alone, heavy duty diesel dispensing solution. An ever reliable Yanmar L48N Engine has been coupled with an Italian made Positive Displacement Vane Pump to provide a fully engineered diesel fuel dispensing package suitable for use with GO Self Bunded Tanks, GO Self Bunded Fuel Trailers or to retro fit to your existing site infrastructure.
Features
- High Flow: DN50 (2") Inlet and Outlet providing a consistent 240lpm flow rate
- Made in Italy Quality
- Portability: It is a portable solution as it doesn't require an external power source.
- Self-Priming: The Pump automatically draws fuel without manual priming.
- Pump Seal: The pump is equipped with a 6 bar mechanical seal. This high-quality seal prevents leaks and ensures a long service life.
- Inlet Strainer: 130µm inlet strainer, which helps to remove impurities from the fuel, protecting the pump's internal components from damage and ensuring clean fuel transfer
- Robust Design: Built for durability in challenging environments.
- Yanmar Quality: Electric Start genuine Yanmar L48N Diesel Driven Engine
- Balanced Cylinders: The engine has balanced cylinders, which helps to reduce vibration during operation. This contributes to a smoother and quieter running pump.
- Motion Transmission: It uses a supported crankshaft for motion transmission, which contributes to its durability and stable operation.
Specifications
- Flow Rate (1 bar): 240 lpm
- Max Pressure: 2.5 Bar
- IN: DN50 (2") BSP F
- OUT: DN50 (2") BSP F
- Flange IN-OUT: Yes
- Suction: 2.5 mt
- Engine Rotation: 3600 rpm
- Power: 3550watt (4.7hp)
- Seal: 6 bar Mechanical Seal
- Valve Start Eased: Included
- Battery: not included - 12V 45A
- Compatible Liquids: Diesel and Low Viscosity Lubricants
- Product Dimensions: 45cm L x 37.5cm W x 37cm H
- Packaging Dimensions: 58cm L x 68cm W x 63cm H
- Weight: 59 kg
